6SL3525-0PE21-5AA1

1 / 2

Descrizione

AttivoConforme a RoHS

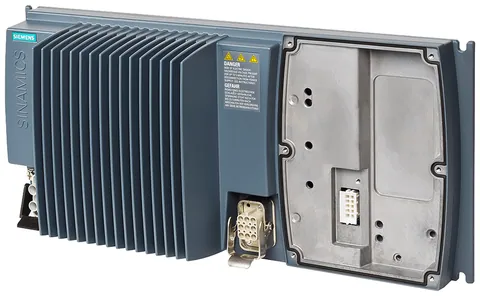

SINAMICS g120d power module pm250d with built in cl. a filter possibility of regeneration 3AC380-480v +10/-10% 47-63HZ output high overload 1,5KW for 200% 3s,150% 60s,100% 300s ambient temp -10 to +55 deg c 210 x 450 x 110 (hxwxd), fsa protection IP65 without control unit

Country of Origin: GB
Part Number: 6SL3525-0PE21-5AA1
Tariff Code: 85044085
EAN: 4019169458597
UPC: 040892552454

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Frequency converter =< 1 kV

Class Code : EC001857

Version : 7

€633.60

net

€720.00

Spedizione Gratuita!

1

Metodi di pagamento:

Migliore offerta da:: Fornitore Automa.Net di fiducia
Disponibilità:: 1 pz.
Disponibile
Aggiornato il: 07-11-2024
Garanzia:: 24 mesi
Consegna stimata:: 08 novembre a Regno Unito
Condizione:: Nuovo sigillato in fabbrica

Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.

Un totale di 12 Parts In-Stock da 2 Distributors

Consegna da:: NL
CZ

Informazioni sulla spedizione

Processo di Pagamento Sicuro

Politiche di Reso e Rimborso

Politiche di Spedizione

Politiche di Garanzia

Offerte Disponibili (2)

Offerte in magazzino

6SL3525-0PE21-5AA1 product image

Siemens

6SL3525-0PE21-5AA1

Condizione:: Rinnovato
Disponibile:: 3 pz.
Disponibile
Aggiornato il: 07-11-2024

Offerta da:: Fornitore Automa.Net di fiducia
Consegna stimata:: 08 novembre a Regno Unito
Garanzia:: 24 mesi

1

€480.00

€422.40

net

Spedizione Gratuita!

6SL3525-0PE21-5AA1 product image

Siemens

6SL3525-0PE21-5AA1

Condizione:: Usato
Disponibile:: 8 pz.
Disponibile
Aggiornato il: 07-11-2024

Offerta da:: Fornitore Automa.Net di fiducia
Consegna stimata:: 08-11 novembre a Regno Unito
Garanzia:: 24 mesi

1

€463.00

€416.70

net

Spedizione da:

€25.00

Specifications

Country of Origin: GB
Depth: 110 mm
Width: 445 mm
Height: 210 mm
Mains voltage: 380 V
Number of phases input: 3
Number of phases output: 3
Max. output frequency: 650 Hz
Type of converter: U converter
Degree of protection (IP): IP65
Nominal output current I2N: 4.1 A
4-quadrant operation possible: true
Integrated breaking resistance: true
Application in industrial area permitted: true
Relative symmetric net voltage tolerance: -10 %
Relative symmetric net frequency tolerance: 10 %
Max. output at linear load at rated output voltage: 1.5 kW
Max. output at quadratic load at rated output voltage: 1.5 kW
