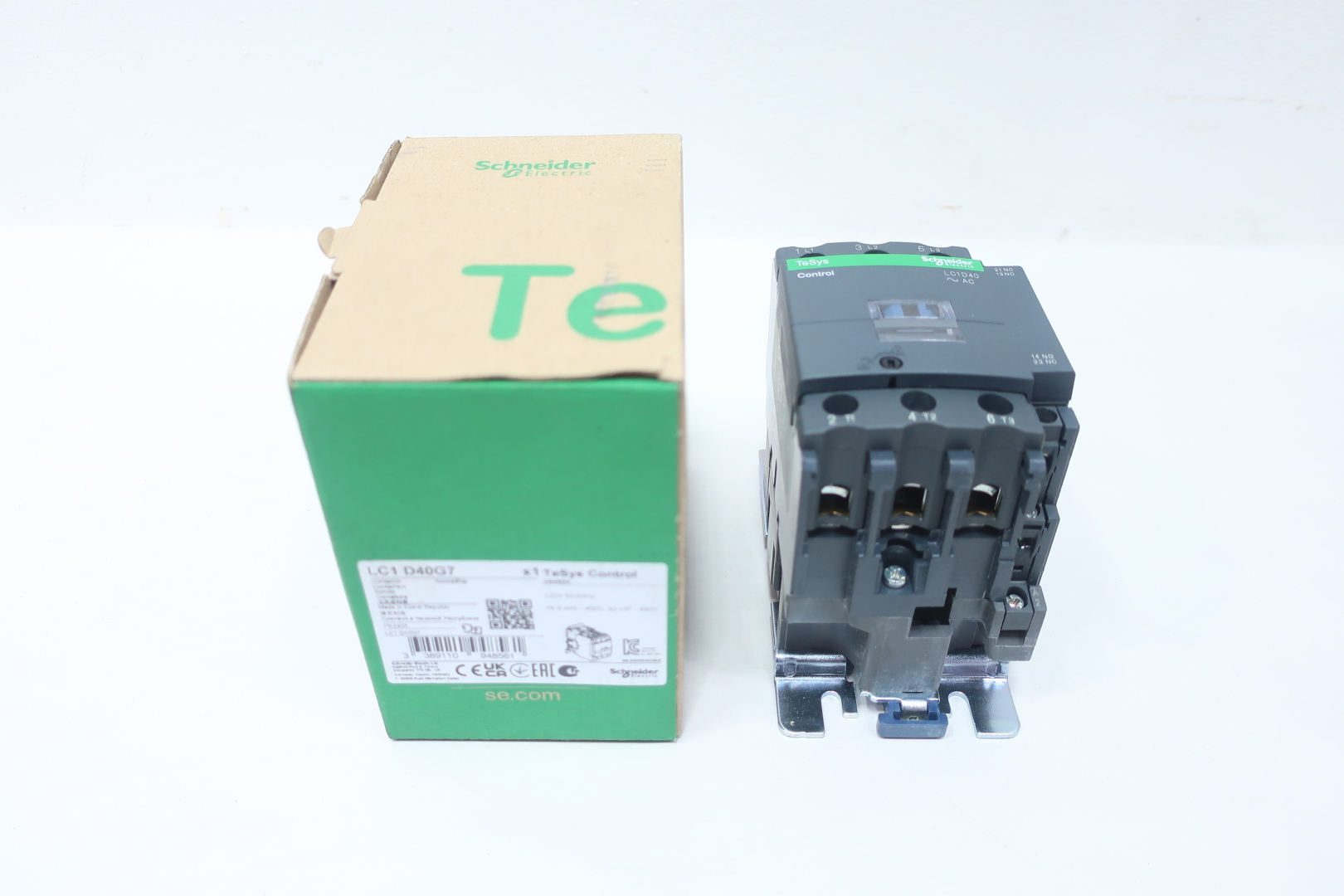

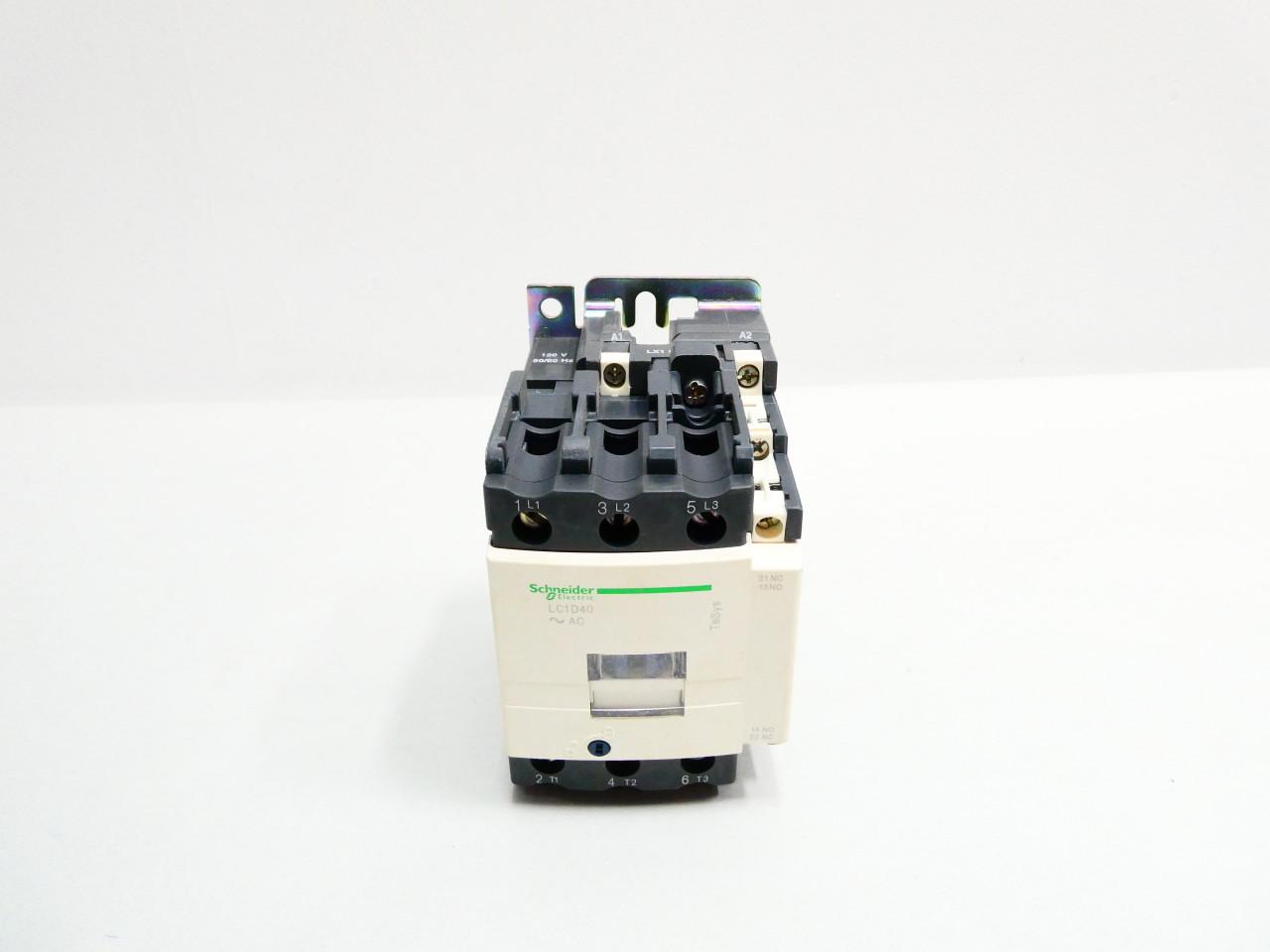

LC1D40G7

Environment

Product Certifications

UL || GL || RINA || LROS (Lloyds register of shipping) || CSA || BV || CCC || GOST || DNV

Height

127 mm

Standards

UL 508 || IEC 60947-4-1 || CSA C22.2 No 14 || EN 60947-4-1 || IEC 60947-5-1 || EN 60947-5-1

Climatic Withstand

IACS E10 exposure to damp heat

Net Weight

1.4 kg

Flame Retardance

V1 conforming to UL 94

Ip Degree Of Protection

IP2X IEC 60529 || IP2X VDE 0106

Mechanical Robustness

shocks contactor opened 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Operating Altitude

9842.52 ft (3000 m) without derating

Fire Resistance

850 °C IEC 60695-2-1

Width

75 mm

Depth

119 mm

Permissible Ambient Air Temperature Around The Device

-5-60 °C || -40-70 °C at Uc

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110205EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Complementary

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts

Minimum Switching Current

5 mA for control circuit

Power Dissipation Per Pole

5.4 W AC-1 || 2.4 W AC-3

Average Impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C) for control circuit || 60 A (at 60 °C) for power circuit

Control Circuit Voltage Limits

0.3...0.6 Uc 60-60 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc 60-60 °C operational AC 50 Hz || 0.85...1.1 Uc 60-60 °C operational AC 60 Hz

Mounting Support

rail || plate

Control Circuit Type

AC 50/60 Hz

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Insulation Resistance

> 10 MOhm for control circuit

Rated Breaking Capacity

800 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

140 A AC for control circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947

Associated Fuse Rating

10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit

Inrush Power In Va

140-140 VA cos phi 0.75 (at 20 °C) || 160-160 VA cos phi 0.75 (at 20 °C)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Pole Contact Composition

3 NO

Connections - Terminals

control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminal 1 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: solid with cable end || power circuit: screw clamp terminal 2 2.5-35 mm² - cable stiffness: solid with cable end || power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminal 2 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminal 2 2.5-35 mm² - cable stiffness: flexible with cable end

Coil Technology

without built-in bidirectional peak limiting diode suppressor

Operating Time

12...26 ms closing || 4...19 ms opening

Minimum Switching Voltage

17 V for control circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Tightening Torque

control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw clamp terminal flat Ø 6 mm || power circuit 5 N.m screw clamp terminal flat Ø 8 mm

Mechanical Durability

6000000 cycles

Auxiliary Contacts Type

mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1

Compatibility Code

LC1D

Hold-In Power Consumption In Va

13-13 VA 50 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)

Overvoltage Category

III

Maximum Horse Power Rating

10 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA || 10 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL || 10 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA || 10 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL || 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA || 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL || 30 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA || 30 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL || 30 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA || 30 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL || 5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA || 5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL

Motor Power Kw

18.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 22 kW at 1000 V AC 50/60 Hz (AC-3) || 22 kW at 415 V AC 50/60 Hz (AC-3) || 22 kW at 440 V AC 50/60 Hz (AC-3) || 22 kW at 500 V AC 50/60 Hz (AC-3) || 30 kW at 660...690 V AC 50/60 Hz (AC-3) || 11 kW at 220...230 V AC 50/60 Hz (AC-3) || 9 kW at 400 V AC 50/60 Hz (AC-4)

[Ui] Rated Insulation Voltage

control circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1

Heat Dissipation

4-5 W at 50/60 Hz for control circuit

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

120 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz

Range Of Product

TeSys Deca

Contactor Application

resistive load || motor control

Product Or Component Type

contactor

Range

TeSys

Utilisation Category

AC-3 || AC-4 || AC-1 || AC-2

[Ie] Rated Operational Current

60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

Poles Description

3P

Device Short Name

LC1D
