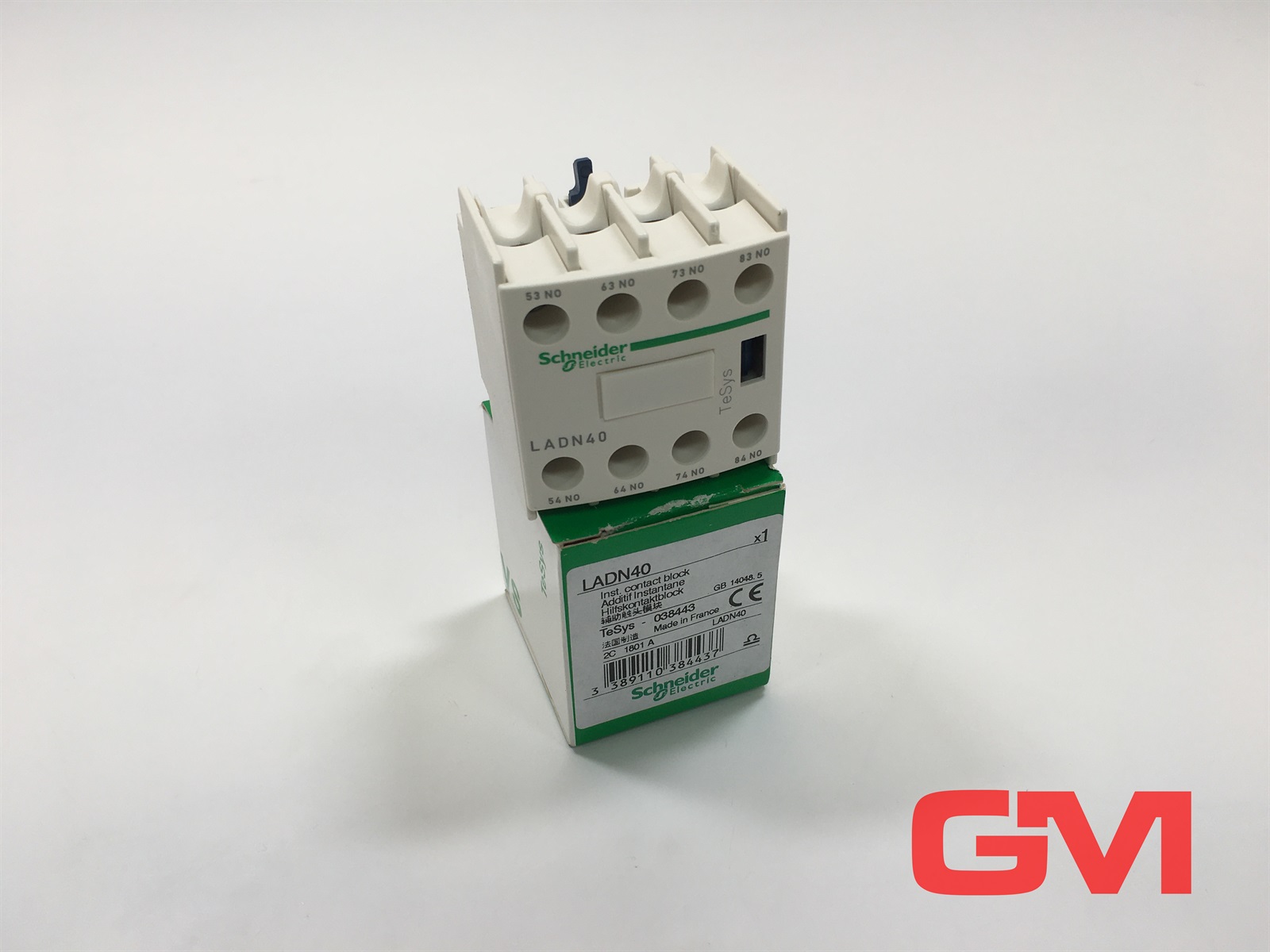

LADN40

Environment

Ambient Air Temperature For Operation

-5-60 °C

Ip Degree Of Protection

IP2X conforming to IEC 60529

Ambient Air Temperature For Storage

-60-80 °C

Environmental Characteristic

normal environment

Protective Treatment

TH IEC 60068

Operating Altitude

9842.52 ft (3000 m)

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110807EN_V3

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Complementary

Non-Overlap Time

1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact

Permissible Short-Time Rating

100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms

Minimum Switching Current

5 mA

Height

48 mm

Protection Type

gG fuse 10 A

Insulation Resistance

> 10 MOhm

Irms Rated Making Capacity

140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1

Net Weight

0.05 kg

Connections - Terminals

screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²rigid without cable end || screw clamp terminals 2 1-4 mm²rigid without cable end

Minimum Switching Voltage

17 V

Tightening Torque

1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2

Mechanical Durability

30 Mcycles

Color

dark grey

Width

44 mm

Depth

42 mm

Specifications

Product Certifications

CB || UL || CSA || CCC || EAC || UKCA

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C)

Standards

EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN 50012

[Ue] Rated Operational Voltage

690 V AC 25...400 Hz

Range Compatibility

TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D

Product Or Component Type

auxiliary contact block

Product Name

TeSys Deca

Range

TeSys || TeSys Deca

Mounting Location

front

Pole Contact Composition

4 NO

[Ui] Rated Insulation Voltage

690 V IEC 60947-5-1 || 600 V UL || 600 V CSA

[Ie] Rated Operational Current

6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13

Auxiliary Contacts Operation

instantaneous

Device Short Name

LADN
