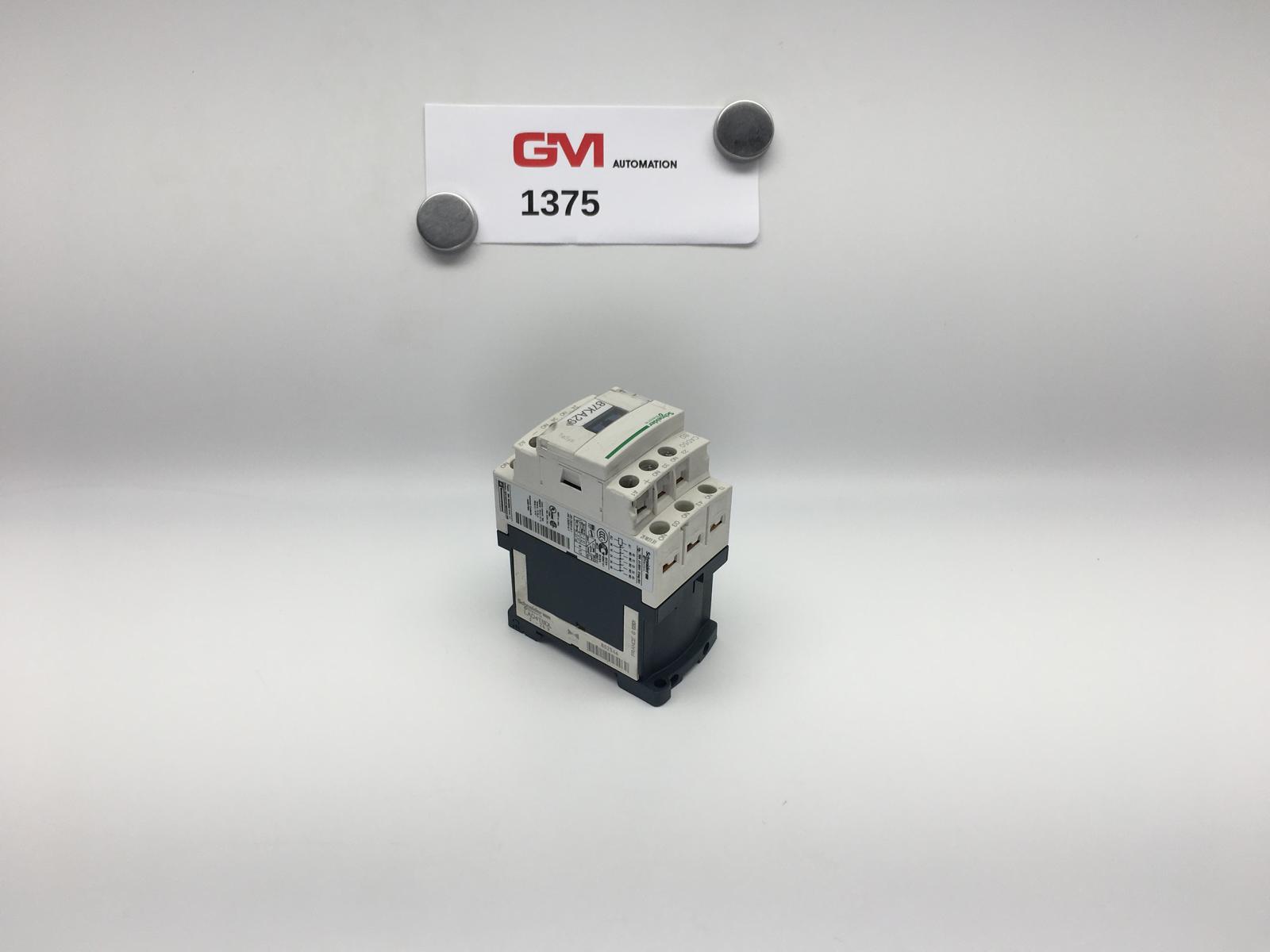

Schneider Electric CAD50BD
TeSys Deca control relay - 5 NO - <= 690 V - 24 V DC standard coil
1 / 1
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The Schneider Electric TeSys Deca control relay, model CAD50BD, is a reliable solution for controlling electromagnetic loads. It offers 5 normally open contacts with a maximum load capacity of 10A/690V and operates at high rates up to 180 cycles per minute in an ambient temperature range of -40°C to +60°C. This compact relay, measuring just 45mm in width, is designed for easy installation on a 35mm DIN rail or via screw fixation. It is equipped with a 24V DC control circuit featuring no inrush consumption and a surge suppression device, ensuring reliable operation. The TeSys Deca relay is certified to multiple standards including IEC, UL, CSA, CCC, EAC, and Marine, and is also RoHS/REACh compliant as part of Schneider Electric's Green Premium product line.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Reino Unido, miembro desde 2021- Disponibilidad:
- 3 piezasEn stockActualizado en: 31-10-2025
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
- Ip Degree Of Protection
- IP2X front face VDE 0106
