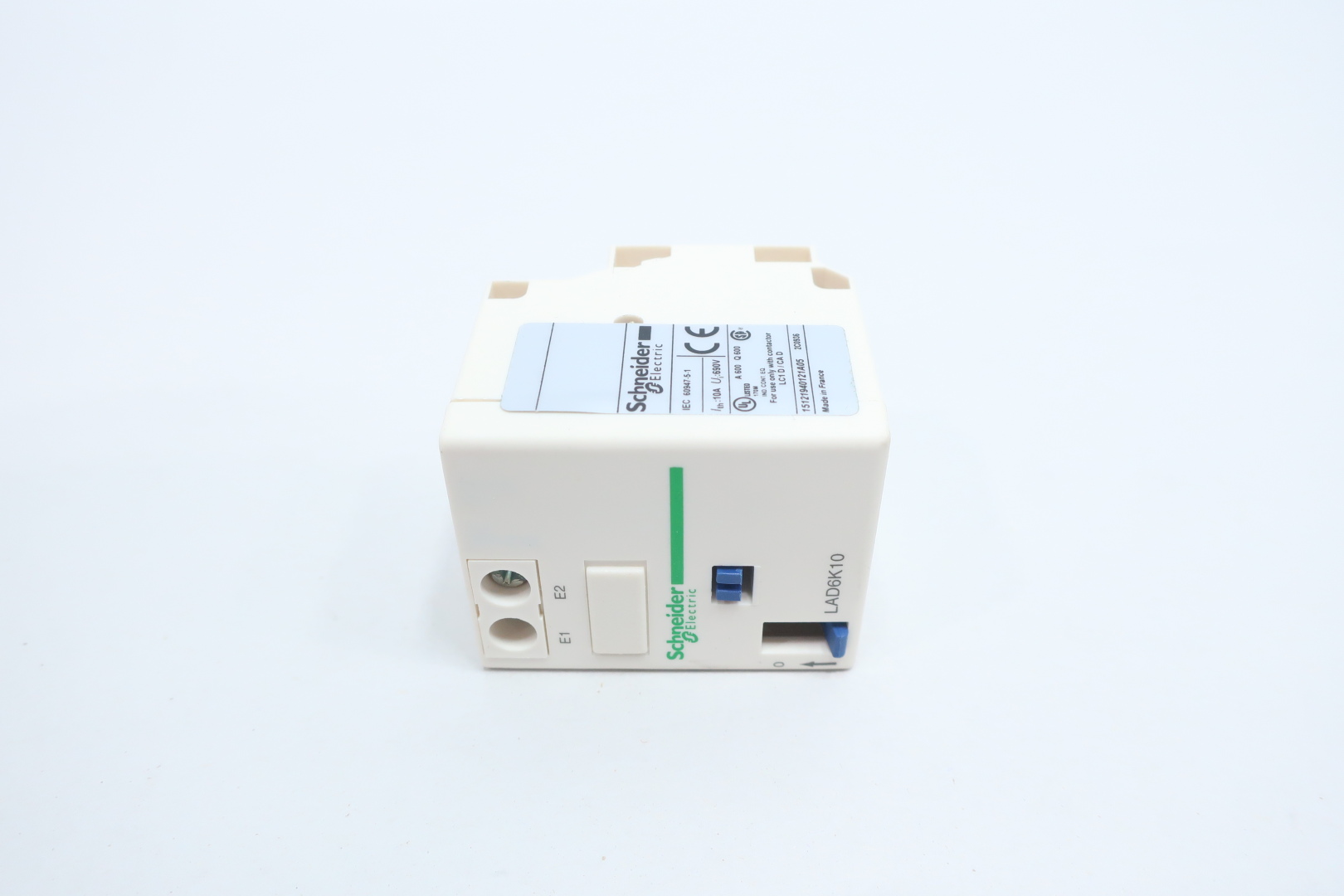

LAD6K10F

Additional Information

Part Number

LAD6K10F

UNSPSC

39121529

Tariff Code

8538908180

Country of Origin

FR

Environment

Product Certifications

UL || CSA

Ambient Air Temperature For Operation

-25-55 °C

Ip Degree Of Protection

IP2XVDE 0106

Ambient Air Temperature For Storage

-40-80 °C

Protective Treatment

THIEC 60068

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2011001

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI2011001

Eu Rohs Directive

Compliant with Exemptions

Complementary

Power Required In W

30 W DC

Tripping Control

manual || electrical

Net Weight

0.07 kg

Mounting Location

front side

[Ui] Rated Insulation Voltage

690 V IEC 60947-5-1

Maximum Operating Rate

1200 cyc/h

Mechanical Durability

500000 cycles

On-Load Factor

10 %

Power Required In Va

25 AC

Specifications

[Uc] Control Circuit Voltage

110/127 V AC 50/60 Hz || 110/127 V DC

Product Compatibility

LC1D09...D38 AC/DC || LC1DT20...DT40 AC/DC || LC1D40A...D80A 3 phase AC/DC || LC1DT60A 3 phases + neutral AC/DC || LC1DT80A 3 phases + neutral AC/DC

Product Or Component Type

mechanical latch block

Range

TeSys
