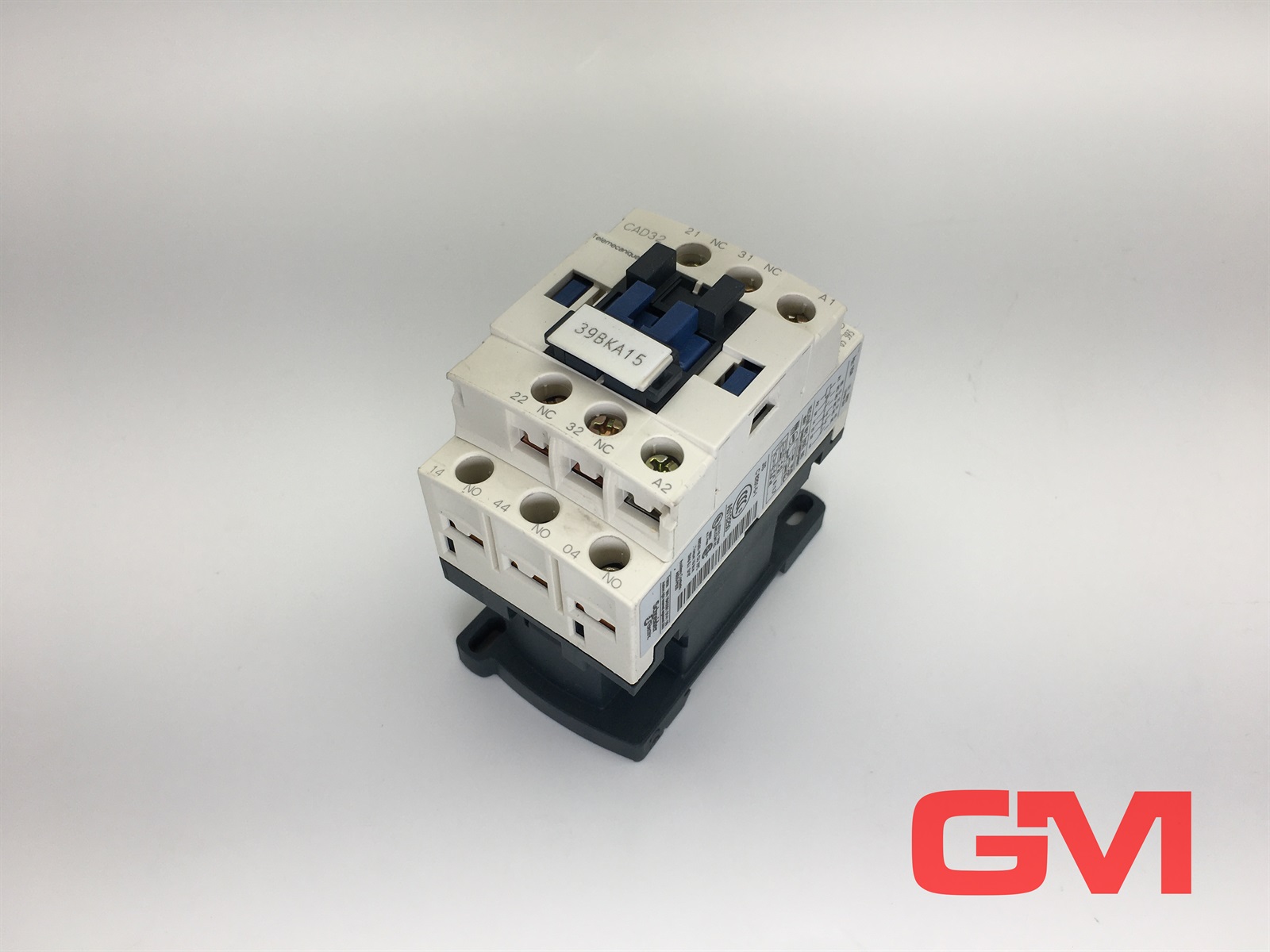

Schneider Electric CAD32FE7
TeSys Deca Relay with 5 Contacts
1 / 2
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The TeSys Deca control relay is a versatile solution with 5 contacts, comprising 3 normally open (NO) and 2 normally closed (NC) connections. This relay can handle up to 10A at a maximum voltage of 690V, making it suitable for controlling electromagnetic loads in AC-15/DC-13 applications.
The TeSys D control relay is equipped with a 115V 50/60Hz AC control circuit, which can be connected via screw clamp terminals. It's designed to operate reliably at high rates, up to 180 cycles per minute, and in a wide temperature range of -40°C to +60°C.
This compact relay measures just 45mm in width, allowing it to be easily mounted on a 35mm DIN rail or fixed using screws. It's certified to multiple international standards (IEC, UL, CSA, CCC, EAC, Marine), and is also a Green Premium product, complying with RoHS/REACh regulations.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Alemania, miembro desde 2025, 5–9 empleados- Disponibilidad:
- 20 piezasEn stockActualizado en: 03-09-2026
- Garantía:
- 6 meses
- Condición:
- Usado
Usado - Un artículo usado previamente con posibles signos de desgaste cosmético. Está completamente operativo y funciona según lo previsto, aunque el embalaje original puede faltar.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
- Ip Degree Of Protection
- IP2X front face VDE 0106
