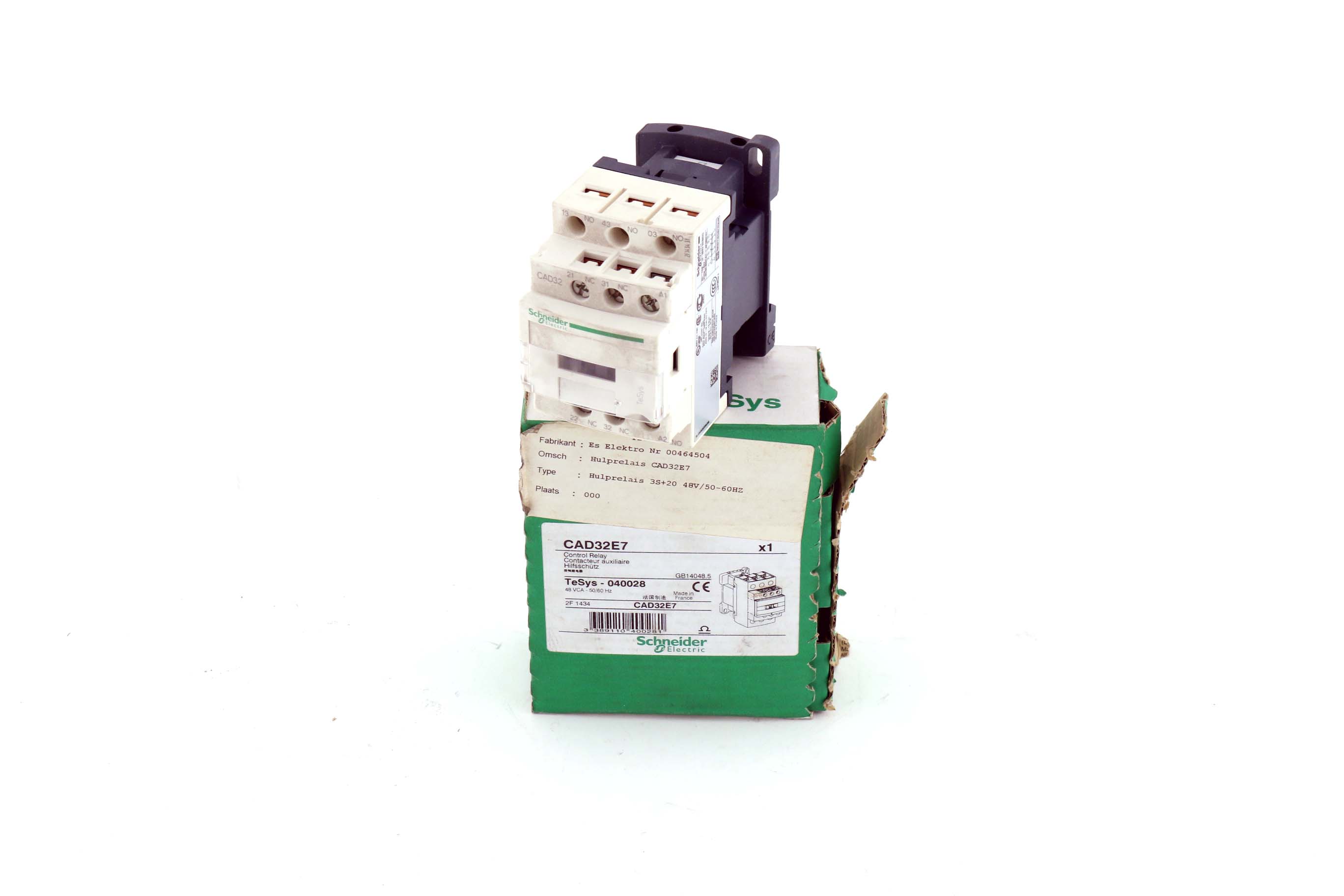

Schneider Electric CAD32E7
TeSys Deca Relay - 5 Contacts (3NO + 2NC) - <=690V - 48V AC Standard Coil
1 / 1
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The TeSys Deca Relay is a robust control relay designed to handle a variety of electromagnetic loads. With 5 contacts (3 normally open + 2 normally closed), it can manage up to 10A at a voltage of 690V. This relay operates on a 48V AC control circuit, making it suitable for both AC and DC applications.
The TeSys Deca Relay is compact, measuring just 45mm in width, and can be easily mounted on a 35mm DIN rail or fixed using screws. It is designed to operate at high rates up to 180 cycles per minute and within a temperature range of -40°C to +60°C.
This relay is certified under multiple standards including IEC, UL, CSA, CCC, EAC, and Marine. It is also a Green Premium product, adhering to RoHS/REACh directives.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
- Ip Degree Of Protection
- IP2X front face VDE 0106
