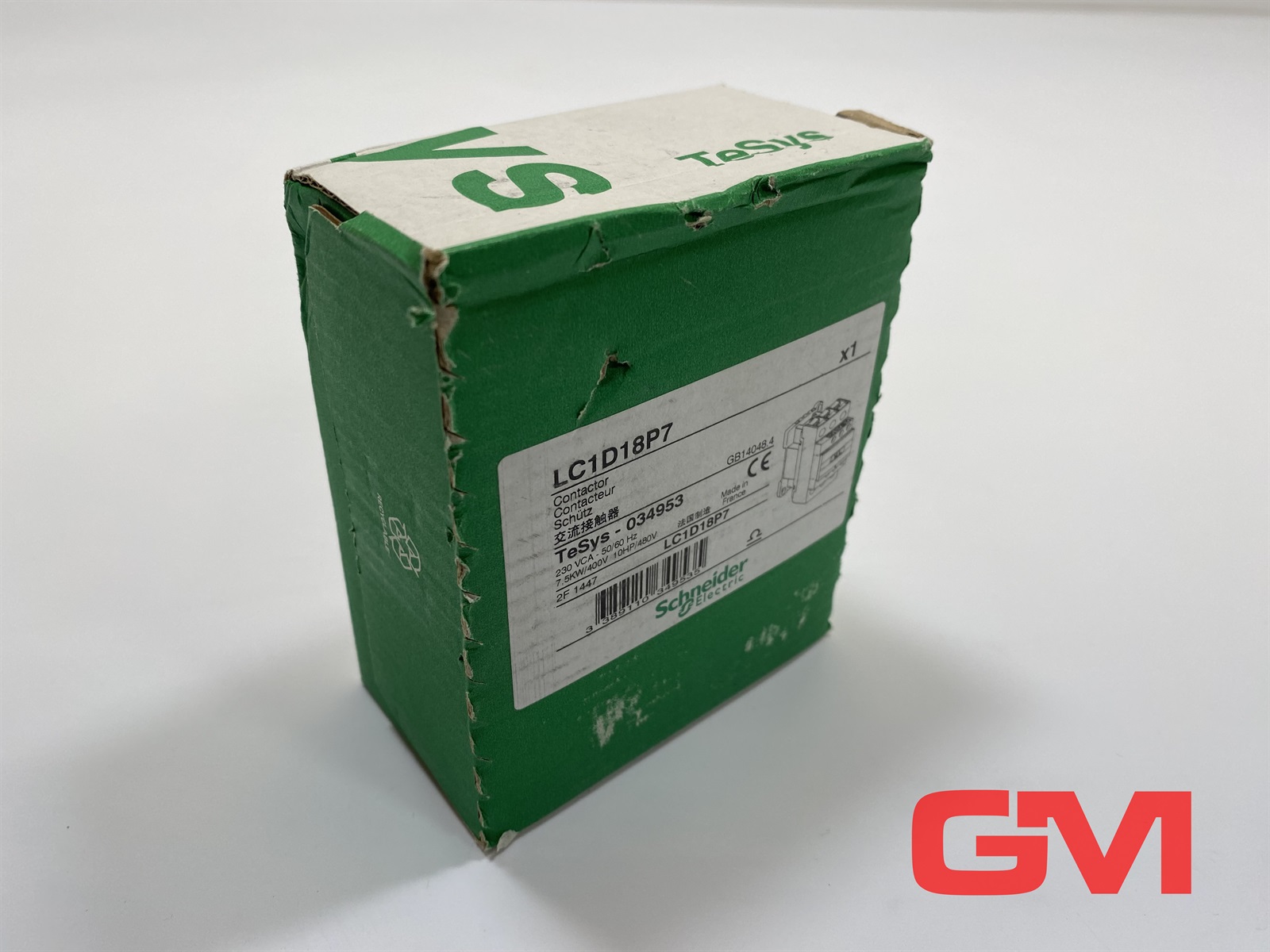

Schneider Electric LC1D18P7
IEC Contact, TeSys Deca, 18A, 3-Phase, 480VAC
1 / 1
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The TeSys D contactors are designed to provide seamless integration into various control systems. These contactors can be used to create motor starters for a wide range of applications.
The 18A inductive 3-phase IEC contactor is suitable for mounting on DIN rail or directly on the panel. It offers both horsepower and Kw motor ratings for international acceptance. The contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC, and 15HP at 600VAC three-phase.
When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. The contactor is supplied with a 230 VAC 50/60 Hz coil and has one normally open and one normally closed auxiliary contact built-in as standard.
The contactor measures 3.03 inches in height, 1.77 inches in width, and 3.39 inches in depth. It weighs 0.73 lbs. The contactor is certified to UL, CSA, IEC, CCC, EAC, and Marine standards and meets the requirements of RoHS/REACh, making it a Green Premium product.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
- Proveedor de confianza — Reino Unido, miembro desde 2021
- Disponibilidad:
- 24 piezasEn stockActualizado en: 31-10-2025
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- UL || LROS (Lloyds register of shipping) || BV || CSA || GOST || GL || CCC || DNV || RINA || UKCA
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Ip Degree Of Protection
- IP20 front face IEC 60529
