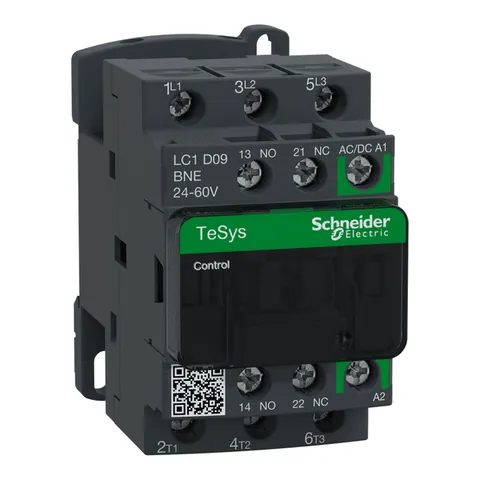

LC1D09BNE

Environment

Product Certifications

CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA

Height

77 mm

Standards

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1

Climatic Withstand

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Net Weight

0.368 kg

Flame Retardance

V1 conforming to UL 94

Ip Degree Of Protection

IP20 front face IEC 60529

Mechanical Robustness

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

45 mm

Depth

86 mm

Permissible Ambient Air Temperature Around The Device

-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1609001EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1609001EN

Eu Rohs Directive

Compliant with Exemptions

Halogen Content Performance

Halogen free plastic parts & cables product

Complementary

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Minimum Switching Current

5 mA for signalling circuit

Power Dissipation Per Pole

1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e

Average Impedance

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C) for signalling circuit || 25 A (at 60 °C) for power circuit

Control Circuit Voltage Limits

<= 0.1 Uc -40-70 °C drop-out AC/DC || 0.85...1.1 Uc -40-60 °C operational AC || 0.8...1.1 Uc -40-60 °C operational DC || 1...1.1 Uc 60-70 °C operational AC/DC

Mounting Support

rail || plate

Control Circuit Type

AC/DC 50/60 Hz AC/DC electronic

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Pollution Degree

3

Hold-In Power Consumption In W

0.6-0.6 W 20 °C

Insulation Resistance

> 10 MOhm for signalling circuit

Rated Breaking Capacity

250 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1

Associated Fuse Rating

10 A gG for signalling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

Inrush Power In Va

15-15 VA 50/60 Hz (at 20 °C)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Pole Contact Composition

3 NO

Connections - Terminals

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid

Coil Technology

built-in bidirectional peak limiting

Operating Time

45...55 ms closing || 20...90 ms opening

Minimum Switching Voltage

17 V for signalling circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Signalling Circuit Frequency

25...400 Hz

Tightening Torque

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2

Electrical Durability

2.4 Mcycles 8 A AC-3 <= 440 V || 0.6 Mcycles 25 A AC-1 <= 440 V || 2.4 Mcycles 8 A AC-3e <= 440 V

Mechanical Durability

15 Mcycles

Inrush Power In W

14-14 W 20 °C)

Auxiliary Contacts Type

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Compatibility Code

LC1D

Hold-In Power Consumption In Va

0.9-0.9 VA 50/60 Hz (at 20 °C)

Overvoltage Category

III

Maximum Horse Power Rating

0.33 hp at 115 V AC 60 Hz for 1 phase motors || 1 hp at 230/240 V AC 60 Hz for 1 phase motors || 2 hp at 200/208 V AC 60 Hz for 3 phase motors || 2 hp at 230/240 V AC 60 Hz for 3 phase motors || 5 hp at 460/480 V AC 60 Hz for 3 phase motors || 7.5 hp at 575/600 V AC 60 Hz for 3 phase motors

Motor Power Kw

2.2 kW at 220...230 V AC 50 Hz (AC-3) || 4 kW at 380...400 V AC 50 Hz (AC-3) || 4 kW at 415 V AC 50 Hz (AC-3) || 4 kW at 440 V AC 50 Hz (AC-3) || 5.5 kW at 500 V AC 50 Hz (AC-3) || 5.5 kW at 660...690 V AC 50 Hz (AC-3) || 2.2 kW at 220...230 V AC 50 Hz (AC-3e) || 4 kW at 380...400 V AC 50 Hz (AC-3e) || 4 kW at 415 V AC 50 Hz (AC-3e) || 4 kW at 440 V AC 50 Hz (AC-3e) || 5.5 kW at 500 V AC 50 Hz (AC-3e) || 5.5 kW at 660...690 V AC 50 Hz (AC-3e)

[Ui] Rated Insulation Voltage

power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1

[Icw] Rated Short-Time Withstand Current

100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit || 30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit

Heat Dissipation

0.6-0.6 W at 50/60 Hz

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

24...60 V AC 50/60 Hz || 24...60 V DC

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz

Range Of Product

TeSys Deca

Contactor Application

motor control || resistive load

Product Or Component Type

contactor

Range

TeSys || TeSys Deca

Utilisation Category

AC-1 || AC-3 || AC-3e

[Ie] Rated Operational Current

9 A (at <60 °C) at <= 440 V AC-3 for power circuit || 25 A (at <60 °C) at <= 440 V AC-1 for power circuit || 9 A (at <60 °C) at <= 440 V AC-3e for power circuit

Poles Description

3P

Device Short Name

LC1D
