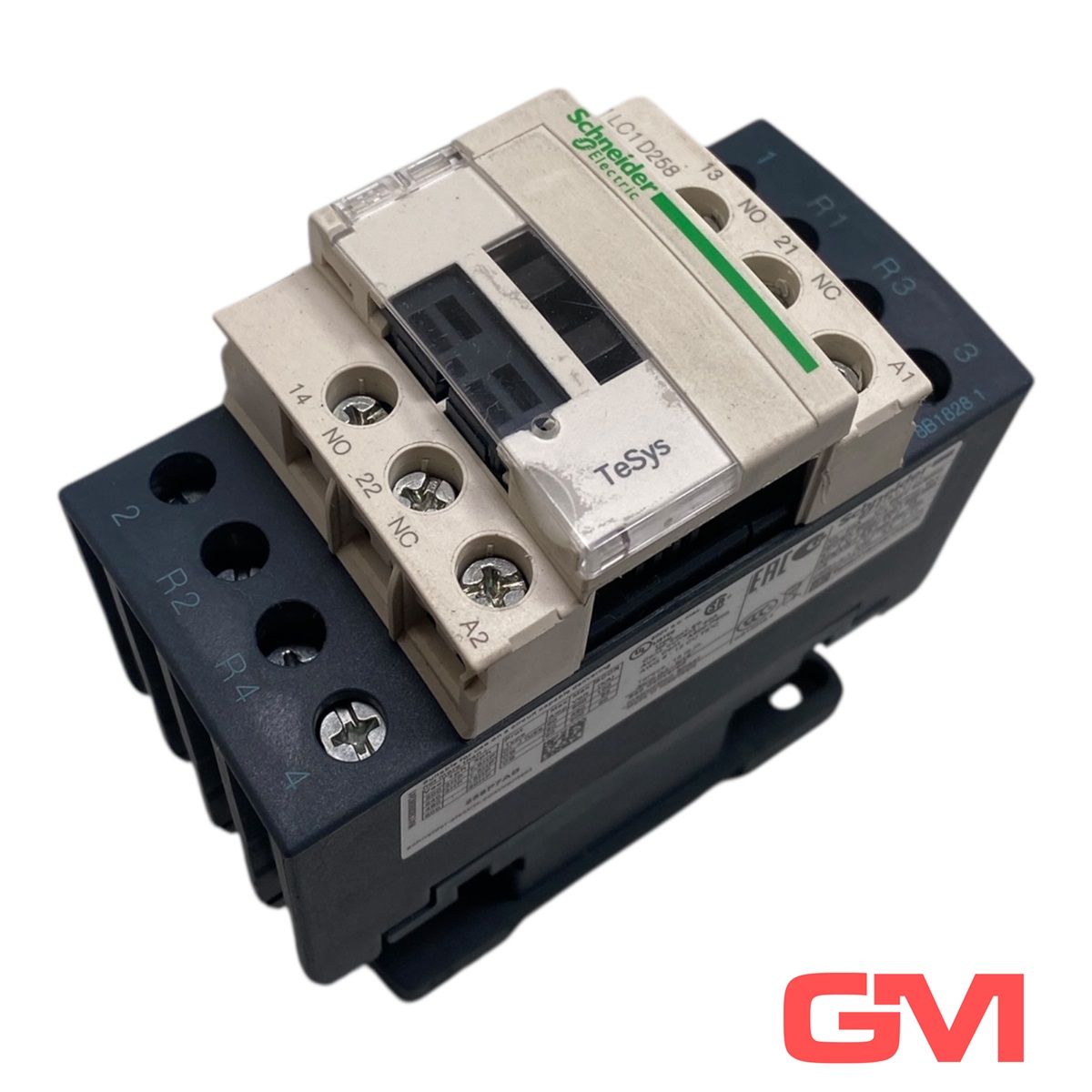

Schneider Electric LC1D258P7

Name: IEC Contact Relay, TeSys Deca, Non-Reversing, 40A Resistive Load, 4 Pole, 2 NO and 2 NC, 230VAC 50/60Hz Coil, Open Style
Brand: Schneider Electric
SKU: LC1D258P7

IEC Contact Relay, TeSys Deca, Non-Reversing, 40A Resistive Load, 4 Pole, 2 NO and 2 NC, 230VAC 50/60Hz Coil, Open Style

1 / 1

Imagen de catálogo del fabricante

Descripción del producto

Ciclo de vida:

The TeSys Deca contact relay is an integral component of control systems, designed for seamless integration. This non-reversing IEC contactor can be employed in a wide range of applications as a motor starter.

This 4 pole contactor boasts a resistive load rating of up to 40A and features two normally open (NO) and two normally closed (NC) power contacts. It is equipped with a 230VAC 50/60Hz coil for reliable operation.

The TeSys Deca contact relay also comes with one NO and one NC auxiliary contact as standard, ensuring comprehensive control capabilities. The load and auxiliary connections are facilitated by screw clamp terminals, enhancing ease of use.

With a height of 4.13 inches, width of 1.77 inches, and depth of 3.90 inches, this contactor is compact yet robust. It weighs approximately 0.94 lbs, making it suitable for various mounting options including DIN rail or panel mount.

The TeSys Deca contact relay is certified under UL, CSA, IEC, CCC, EAC, and Marine standards, ensuring high-quality performance. It also adheres to RoHS/REACh regulations, positioning it as a Green Premium product.

Enviar consulta

Métodos de pago:

Detalles de la oferta

Mejor oferta de:: Proveedor de confianza — Reino Unido, miembro desde 2021
Disponibilidad:: 3 piezas
En stock
Actualizado en: 31-10-2025
Condición:: Nuevo Precintado de Fábrica

Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.

El Vendedor es responsable de enviar el producto y facturar

Especificaciones

Marca: Schneider Electric
Product Certifications: UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL
Standards: EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
Climatic Withstand: IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
Flame Retardance: V1 conforming to UL 94
Protective Treatment: THIEC 60068-2-30
Ip Degree Of Protection: IP20 front face IEC 60529
