ABB 1SBL136201R2200

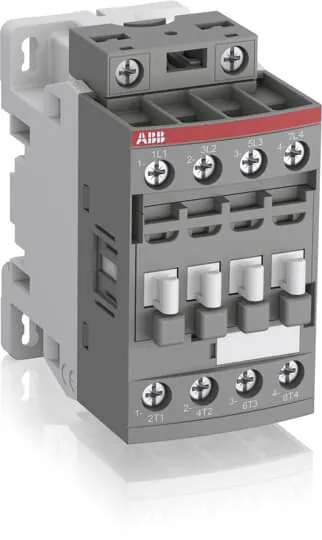

The AF09Z-40-00-22 is designed as a four-pole contactor with a rated operational voltage of 690 V, compliant with IEC and UL standards. It effectively controls motors up to 4 kW at 400 V AC (AC-3) and can switch power circuits rated up to 25 A (AC-1). A key advantage of the AF technology is its broad control voltage range of 48-130 V at 50/60 Hz and DC, which accommodates significant variations in control voltage. This feature contributes to reduced energy consumption in control panels and ensures reliable operation in unstable network conditions.

Built-in surge protection enhances its functionality, providing a compact and efficient solution. The contactor's block type design allows for straightforward extension with add-on auxiliary contact blocks and a diverse array of accessories. The dimensions of the contactor are 45 mm in width, 77 mm in depth, and 86 mm in height, with a net weight of 0.31 kg.

With a rated operational current of 25 A AC-1 at 690 V and up to 4 kW at 400 V AC-3, this contactor is suitable for various applications. The device complies with multiple standards, including IEC/EN 60947-1 and UL 508, ensuring its reliability in diverse environments. The degree of protection is IP20 for both coil and main terminals, conforming to IEC 60529 standards.
