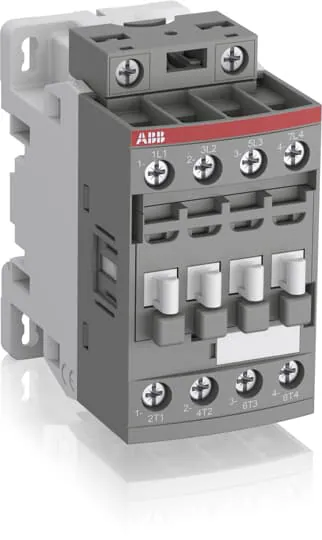

ABB 1SBL176201R2200

The AF16Z-40-00-22 contactor operates at a maximum voltage of 690 V according to IEC standards and 600 V per UL requirements. It is capable of managing motors rated up to 7.5 kW under AC-3 conditions and can switch power circuits carrying up to 30 A under AC-1 conditions. This device features a wide control voltage acceptance of 48-130 V at both 50 and 60 Hz, along with direct current, making it suitable for environments with significant voltage fluctuations.

Incorporating built-in surge protection and a compact block-type design, this contactor supports easy extension with auxiliary contact blocks and a variety of accessories. Its screw terminals facilitate straightforward connections, accommodating a range of wire sizes for both main and auxiliary circuits. The product is mounted on a DIN rail and adheres to various global standards including IEC/EN 60947-1 and UL 508.

With an ambient operating temperature range from -40 °C to 70 °C and a maximum operating altitude of 3000 m without derating, the AF16Z-40-00-22 is designed for diverse industrial applications. The degree of protection for the coil and main terminals is IP20, ensuring adequate safety in typical environments. For installation, the recommended tightening torque is 1.2 N·m for the control circuit and 1.5 N·m for the main circuit.
