ABB 1SBL347201R1400

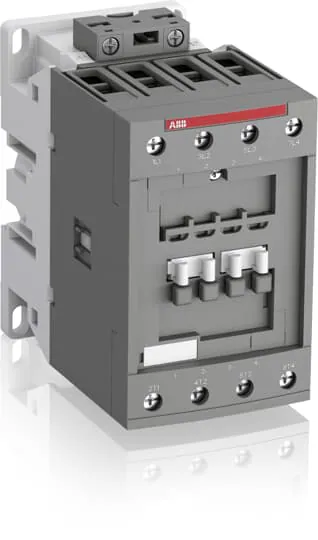

The AF40-40-00-14 contactor is designed with a block type structure and is compliant with several international standards, including IEC/EN and UL certifications. It supports a rated operational voltage of 690 V and is suitable for controlling motors with a power rating of up to 18.5 kW at 400 V AC in the AC-3 application. The contactor is equipped to handle a maximum switching capacity of 70 A in AC-1 and 60 A for general use under UL standards.

With its ability to manage a wide control voltage range from 250 to 500 V across both 50/60 Hz and DC operations, the AF technology minimizes energy consumption in control panels and ensures reliable functionality in variable network conditions. It features integrated surge protection, enhancing the compact solution's reliability.

The dimensions of the contactor are 70 mm in width, 113.5 mm in depth, and 125.5 mm in height, with a net weight of 1.16 kg. Installation on a DIN rail is straightforward, adhering to the TH35-15 mounting standard, and it allows for easy integration of auxiliary contact blocks and accessories.
