ABB
1SCA022727R5750

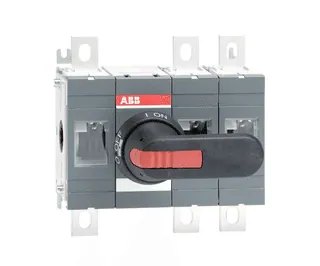

OT400E12P SWITCH-DISCONNECTOR
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
$560.91
1
Metodi di pagamento:
Un totale di 336 Parts In-Stock da 14 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€136.77
Additional Information
- Part Number
- 1SCA022727R5750
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Switch disconnector
- Class Code : EC000216
- Version : 7
Dimensions
- Product Net Width
- 196 mm
- Product Net Height
- 185 mm
- Product Net Depth / Length
- 107 mm
- Product Net Weight
- 3.2 kg7 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A(1000 V) 400 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 132 kW(400 ... 415 V) 230 kW(500 V) 280 kW(690 V) 400 kW
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 400 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V) 65 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 15 kA
- Rated Conditional Short-Circuit Current (Inc)
- (500 A fuse, 500 V) 100 kA(500 A fuse, 690 V) 80 kA
- Power Loss
- at Rated Operating Conditions per Pole 10 W
- Pollution Degree
- 3
- Handle Color
- Black
- Handle Type
- Handle and shaft included
- Switches Operating Mechanism
- Mechanism Between the Poles12 (Between the Poles)
- Distance Between Phases
- Standard
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Operating Mode
- Front operated
- Standards
- IEC 60947-3
- Special Functions
- No
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Degree of Protection
- Front IP00
- Terminal Type
- Lug terminals
- Terminal Width
- 25 mm
- Tightening Torque
- acc. IEC 60947-1 30 … 44 N·m
- Mechanical Durability
- 16000
- Lock Type
- Yes
Classifications
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- EClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3661452
- E-Number (Sweden)
- 3171203
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Environmental Information
- 1SCC301266D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Environmental Information
- 1SCC301266D0201
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Technical UL/CSA
- Tightening Torque
- acc. IEC 60947-1 30 … 44 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Customs Tariff Number
- 85365080
- Country of Origin
- Finland (FI)
