ABB 1SDA071105R1

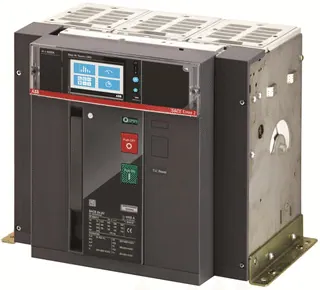

The E4.2V 2000 Ekip Touch LSI is a three-pole air circuit breaker designed for AC applications with a rated current of 2000 A. It features a solid-state release system and is equipped with four auxiliary contacts. This unit is built for versatility, with a rated operational voltage of 690 V AC and a rated short-circuit breaking capacity (Icu) of up to 150 kA for various voltage levels.

With a mechanical durability of 20,000 cycles and an electrical durability rating of 10,000 cycles at 440 V, this circuit breaker ensures reliable performance in demanding environments. The Ekip Touch LSI release type offers advanced protection features, making it suitable for IT networks. The terminal connection is designed as a rear flat horizontal type, facilitating installation in compact spaces.

Complying with IEC standards, the E4.2 also emphasizes sustainability, featuring a recyclability rate of 77.4% according to EN45555 and adhering to RoHS directives. Its dimensions are 384 mm in width, 371 mm in height, and 270 mm in depth, with a net weight of 56 kg, ensuring it fits standard installation cabinets.
