ABB 1SDA071302R1

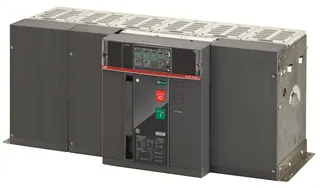

The E6.2V 6300 Ekip Dip LSI is an air circuit breaker configured as a fixed three-pole unit, optimized for AC applications with a rated current of 6300 A. This device ensures high operational reliability with a rated operational voltage of 690 V AC and is compliant with IEC standards.

It features a solid-state release mechanism, specifically the Ekip Dip LSI type, which enhances its performance characteristics. The breaker is equipped with four auxiliary contacts and is designed for a mechanical durability of up to 12,000 cycles, allowing for 60 operations per hour. Additionally, it supports a significant short-circuit breaking capacity of up to 150 kA, depending on the operational voltage.

In terms of dimensions, the unit measures 762 mm in width, 371 mm in height, and 270 mm in depth, with a net weight of 109 kg. The installation requirements include a tightening torque of 70 N·m for the rear flat horizontal terminal connection type, ensuring secure and stable connectivity.

With a power loss of 767 W, the breaker is designed for efficiency in its operational parameters, and it adheres to sustainability practices with a recyclability rate of 76.7% in accordance with EN45555. The Environmental Product Declaration (EPD) and compliance with various environmental standards further underscore its design for resource efficiency.
