ABB 1SDA071899R1

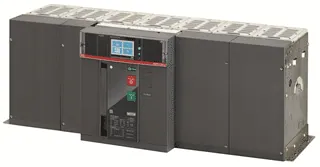

The E6.2H 5000 Air Circuit Breaker is a fixed, four-pole circuit protection device designed for AC applications with a rated current of 5000 A and a rated operational voltage of 690 V. This unit is equipped with a solid-state release using the Ekip Hi-Touch LSIG technology, ensuring reliable performance in various operating conditions.

Its electrical durability is rated for up to 440 V at 3000 cycles and 500 to 690 V at 2000 cycles, with a mechanical durability of 12,000 cycles. The circuit breaker supports a rated short-circuit breaking capacity of 100 kA across multiple voltage levels up to 690 V, making it suitable for high-demand applications.

Additional features include a neutral pole current rating of 50% and a power loss measurement of 483 W. The device adheres to IEC standards and is compliant with environmental regulations, including RoHS and REACH. The design incorporates a recyclability rate of 76.7% according to EN45555 standards, aligning with circular economy principles.

This model's physical dimensions include a width of 888 mm, height of 371 mm, and depth of 270 mm, with a net weight of 125 kg. The terminal connection type is rear flat horizontal, facilitating easier installation. The recommended tightening torque for the terminals is 70 N·m.

For further details, the product is classified under the designation code E6.2 and falls within the ETIM classification EC000228 for power circuit breakers.
