ABB 1SDA071995R1

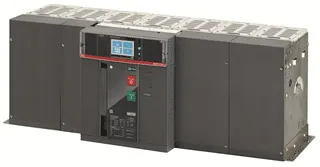

The E6.2V/f 5000 Ekip Touch LSI is an air circuit breaker featuring a fixed four-pole design with a full-size neutral and rear horizontal terminals. It is equipped with a solid-state release and is rated for operational voltages up to 690 V AC. This device supports a rated current of 5000 A and is compliant with IEC standards.

The breaker provides high electrical durability, capable of withstanding up to 3000 cycles at 440 V and 2000 cycles at voltages between 500 V and 690 V, with a mechanical durability of 12000 cycles. The neutral pole current is rated at 100% of the nominal current, ensuring reliable performance during operation.

Additionally, it features a rated short-circuit breaking capacity of up to 150 kA for several standard voltages, ensuring it can handle significant fault conditions. The recommended tightening torque for terminal connections is 70 N·m, and the device measures 1014 mm in width, 371 mm in height, and 270 mm in depth, with a net weight of 140 kg. This product also adheres to environmental standards, with a recyclability rate of 76.7% according to EN45555.
