ABB 1SDA072239R1

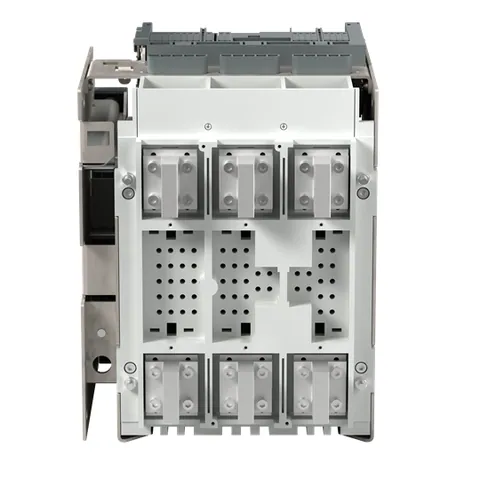

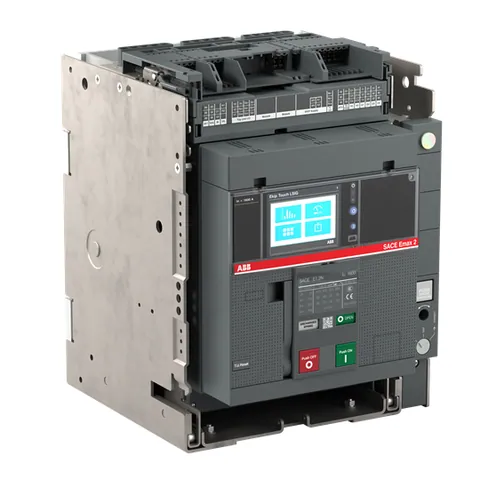

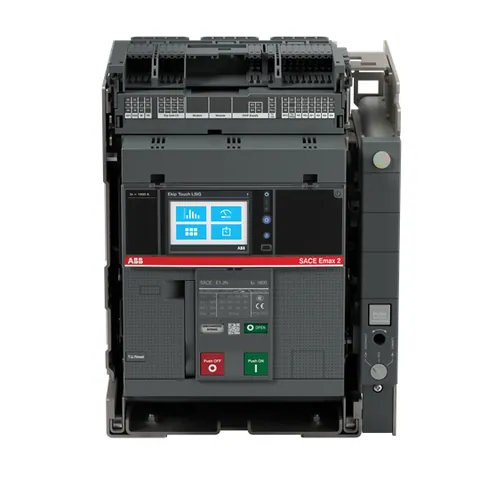

The E1.2N 1600 Ekip Hi-Touch LSIG 3p WMP serves as a critical component for circuit protection in electrical installations. This three-pole air circuit breaker is equipped with a solid-state release mechanism, specifically the Ekip Hi-Touch LSIG, ensuring reliable operation under varying conditions.

With a rated current of 1600 A and capable of handling operational voltages up to 690 V AC, this unit is designed for significant electrical loads. Its electrical durability is rated for 3000 cycles at voltages up to 440 V and 6500 cycles at voltages between 500 V and 690 V, alongside a mechanical durability of 20000 cycles. The voltage withstand capabilities include a rated impulse withstand voltage of 12 kV, conforming to IEC standards.

For short-circuit protection, the breaker features a rated service short-circuit breaking capacity (Ics) of 66 kA at various voltages and maintains a high performance level, rated at 100% of its ultimate short-circuit breaking capacity (Icu). Furthermore, it supports a short-time withstand current of 50 kA for 1 second and 30 kA for 3 seconds, ensuring robust safety during fault conditions.

The device's physical dimensions are 278 mm in width, 363.5 mm in height, and 271 mm in depth, with a net weight of 18 kg. This product aligns with ecological standards, evidenced by its recyclability rate of approximately 77.6% according to EN45555, and it meets various environmental compliance directives.

This product is classified under the designation...
