ABB 1SDA072289R1

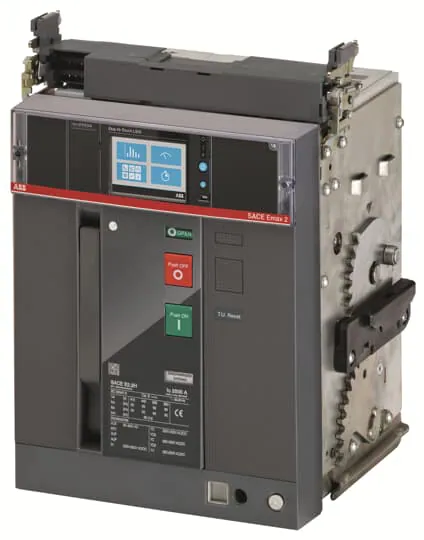

The E2.2S 1000 model is an air circuit breaker featuring a three-pole configuration and is designed for use in AC environments. This unit is equipped with the Ekip Hi-Touch LSIG release mechanism, ensuring precise operational control. With a rated current of 1000 A and a rated voltage of 690 V AC, it supports a short-circuit breaking capacity of up to 85 kA at various voltage levels. Its electrical durability is rated up to 15,000 cycles at voltages below 440 V and 500-690 V, and it can handle up to 30 cycles per hour.

In terms of mechanical durability, this breaker can withstand up to 25,000 cycles, operating at 60 cycles per hour. The product's overall dimensions are 317 mm in width, 425 mm in height, and 383 mm in depth, with a net weight of 48 kg. It also integrates four auxiliary contacts for enhanced functionality during open and closed positions.

This device complies with IEC standards and features a rated impulse withstand voltage of 12 kV, alongside an insulation voltage rating of AC 1000 V. The E2.2S 1000 is designed with sustainability in mind, achieving a recyclability rate of 79.3% according to EN45555 standards, and participates in waste management initiatives.
