ABB 1SDA072622R1

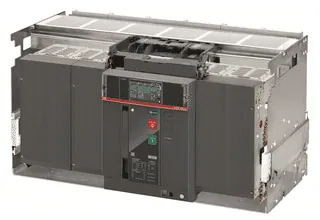

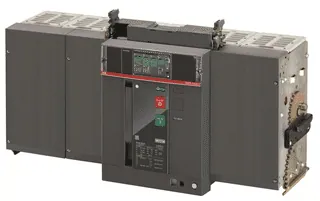

The E6.2V 5000 Ekip Dip LSI 3p is a critical component for air circuit breakers, specifically engineered for the SACE EMAX2 series. This model features a rated current of 5000 A and operates effectively at a rated voltage of 690 V AC. It incorporates a solid-state release mechanism, ensuring reliable performance under various conditions.

With a mechanical durability of 12,000 cycles and an electrical durability rated for 3,000 cycles at 440 V and 2,000 cycles at 500 to 690 V, this device supports operational demands of up to 10 cycles per hour. The short-circuit breaking capacity is notable, reaching up to 150 kA for several voltage ratings, ensuring robust protection for electrical installations.

The product dimensions are as follows: a width of 803 mm, height of 425 mm, and depth of 383 mm, with a net weight of 120 kg. It is designed in compliance with IEC standards, ensuring high reliability and safety in industrial applications. Additionally, it features four auxiliary contacts and is suitable for IT networks, enhancing its versatility in various configurations.

For sustainability, the E6.2V 5000 adheres to circular design principles, achieving a recyclability rate of 76.7%, thus contributing to resource conservation efforts.
