ABB 1SDA072625R1

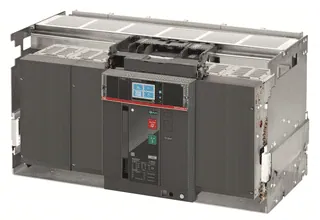

The E6.2V 5000 Ekip Touch LSI is a three-pole moving part designed for the SACE EMAX2 circuit breaker. It incorporates solid-state release technology suitable for AC applications. The device supports a rated current of 5000 A and functions efficiently across a voltage range of 690 V. Notably, the circuit breaker is equipped with four auxiliary contacts, facilitating operational versatility in both open and closed positions.

In terms of electrical durability, this unit can endure 3000 cycles at a maximum voltage of 440 V and 2000 cycles at 500-690 V, operating at a maximum of 10 cycles per hour. The mechanical durability is rated for 12000 cycles with a frequency of 60 cycles per hour. Furthermore, the product ensures a power loss of 850 W during operation.

The rated short-circuit breaking capacity is significant, with values reaching up to 150 kA across various operational voltages, ensuring effective protection against faults. The rated ultimate short-circuit breaking capacity (Icu) also demonstrates robust performance, with ratings of 100 kA to 150 kA depending on the voltage level.

Environmental considerations have been integrated into the design, with a recyclability rate compliant with EN45555 standards, ensuring sustainable lifecycle management. The product adheres to IEC standards, marked for high reliability.
