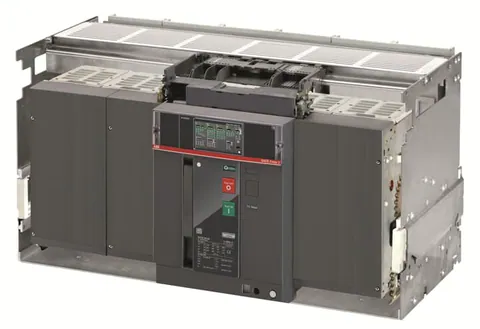

ABB 1SDA072652R1

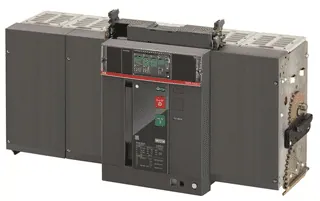

This three-pole air circuit breaker, designated as E6.2V 6300, is engineered for use with the SACE Emax 2 series. It features a solid-state release mechanism (Ekip Dip LSI) and offers a rated current capacity of 6300 A, making it suitable for high-demand applications.

The device operates at a rated voltage of 690 V AC and has an electrical durability rated up to 440 V for 2000 cycles, and 500...690 V for the same number of cycles at a frequency of 10 cycles per hour. Mechanical durability is rated for 12000 cycles at a pace of 60 cycles per hour. This breaker ensures reliable circuit protection with a short-circuit breaking capacity (Ics) of up to 150 kA across multiple voltage ratings.

With dimensions of 803 mm in width, 425 mm in height, and 383 mm in depth, the product weighs 120 kg. It is designed with four auxiliary contacts and displays operational readiness in both open and closed positions. The device meets various standards, including IEC, enhancing its suitability for industrial applications.

Environmental considerations are addressed with a recyclability rate of 76.7% according to EN45555, and it is compliant with RoHS directives.
