ABB 1SDA072853R1

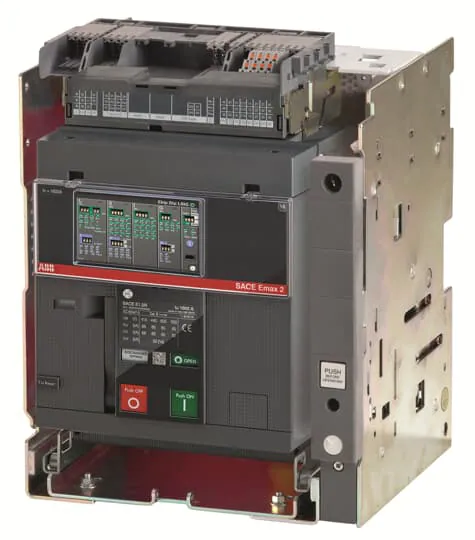

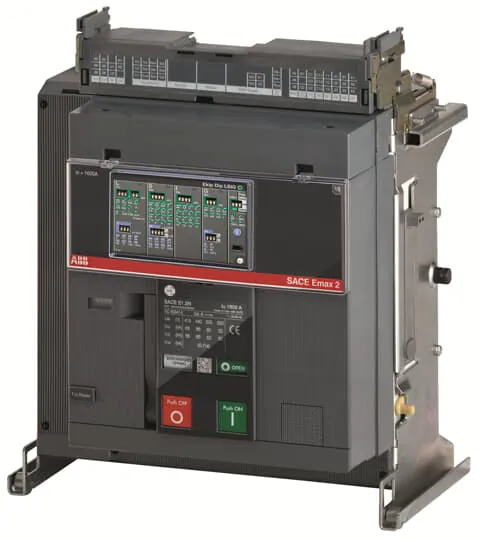

The E1.2C 1600 Air Circuit Breaker is designed for effective electrical protection in AC systems. This four-pole device incorporates a solid-state release mechanism (Ekip Dip LSIG) and is equipped with four auxiliary contacts, allowing for precise control of the circuit's operational state.

Capable of handling a rated current of 1600 A and an operational voltage of up to 690 V AC, the breaker ensures high performance under various conditions. It is rated for a short-circuit breaking capacity of 50 kA for multiple voltage levels, providing robust overcurrent protection. The electrical durability is rated at 3000 cycles for voltages up to 440 V and 6500 cycles for voltages between 500 V and 690 V.

In terms of mechanical durability, the device can withstand 20,000 cycles, making it suitable for frequent operation. Its dimensions include a width of 348 mm, height of 363.5 mm, and depth of 271 mm, with a weight of 20 kg. The product is compliant with IEC standards, ensuring reliability and safety across various industrial applications. Additionally, the product features a recyclability rate of 77.6%, adhering to environmental standards.
