ABB 1SDA073216R1

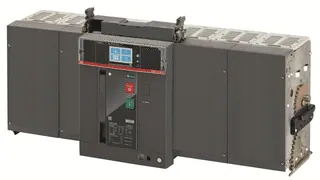

The E6.2H 4000 Ekip Touch LSIG is an advanced four-pole air circuit breaker suitable for AC applications, featuring a solid-state release mechanism. This model is designed for effective protection in electrical systems, offering a rated current of 4000 A and a rated operational voltage of 690 V AC. Its electrical durability is rated for up to 440 V with a cycle capacity of 4000, and it supports 10 cycles per hour, making it adaptable for various operational demands.

Incorporating a release type of Ekip Touch LSIG, this device ensures reliable performance with a short-circuit breaking capacity of 100 kA across multiple voltage ratings up to 690 V AC. It operates efficiently with a power loss of 544 W and maintains mechanical durability for 12000 cycles at a rate of 60 cycles per hour.

Dimensions of the product are as follows: a width of 929 mm, height of 425 mm, and depth of 383 mm, with a net weight of 134 kg. The device complies with various standards, including IEC, and is designed with environmental considerations, featuring a recyclability rate of 76.7% according to EN45555.
