ABB 1SVR360563R1001

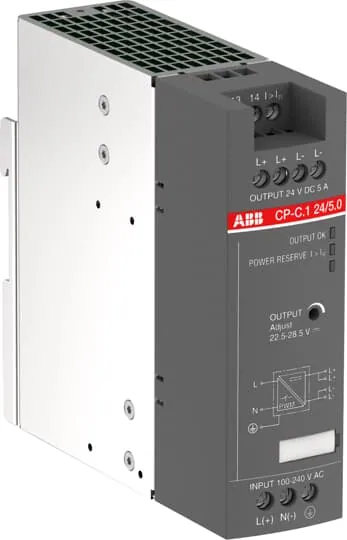

The CP-C.1 24/5.0, a product from the CP-C.1 series, is a robust power supply that offers a broad spectrum of capabilities. This primary switch mode power supply is designed to handle a diverse range of input voltages, with an acceptable voltage range spanning from 85-264 V AC and 90-300 V DC. The rated input voltage is set at 110-240 V AC.

The CP-C.1 24/5.0 boasts a high output power rating of 120 W, with an output current capacity of up to 5 A at an output voltage of 24 V DC. The output voltage is finely adjustable within the range of 22.5 to 28.5 V DC, providing flexibility in various applications.

This power supply is equipped with a U/I output characteristic and offers a power reserve of up to 50%. It also supports parallel operation, allowing for increased capacity and redundancy. The power supply adheres to the power factor correction standard EN 61000-3-2.

For enhanced functionality, additional accessories such as redundancy units and buffer modules are available. These can be integrated to further enhance the power supply's performance in specific applications.
