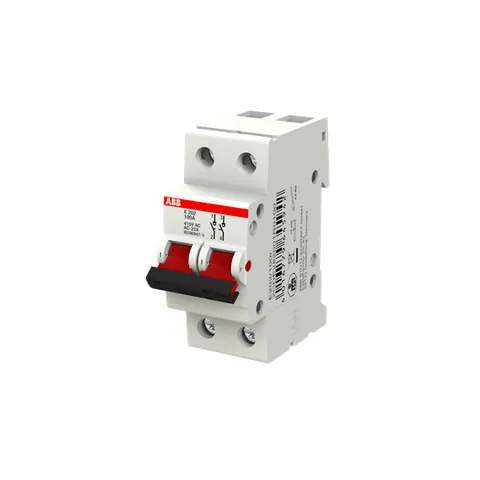

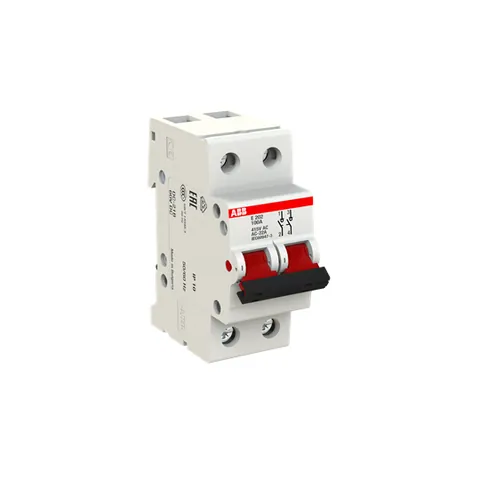

ABB 2CDE282001R0100

The E202/100R switch disconnector is intended for effective load management, adhering to the IEC/EN 60947-3 standard. It features a rated operational voltage of 230 / 400 V AC and a rated current of 100 A, making it suitable for various applications.

Constructed for ease of use, it allows for fast removal of the busbar without the need for disassembly. The device incorporates captive screws with a Pozidrive size 2 head, facilitating simple installation and maintenance. Additionally, it supports the integration of up to three auxiliary contacts (S2C-H6R), enhancing its functionality.

For labeling purposes, the switch features an integrated lay-on edge compatible with the ILS labeling system. The device is equipped with a locking mechanism to prevent unauthorized operation. It has received multiple approvals, including VDE, CCC, and KEMA.

Its compact design measures 35 mm in width, 85 mm in height, and 69 mm in depth, with a net weight of 0.19 kg. The switch operates within an ambient temperature range of -25 to +55 °C, ensuring reliability in various conditions. Moreover, it conforms to RoHS regulations and has a recyclability rate of 81.9% according to EN45555.
