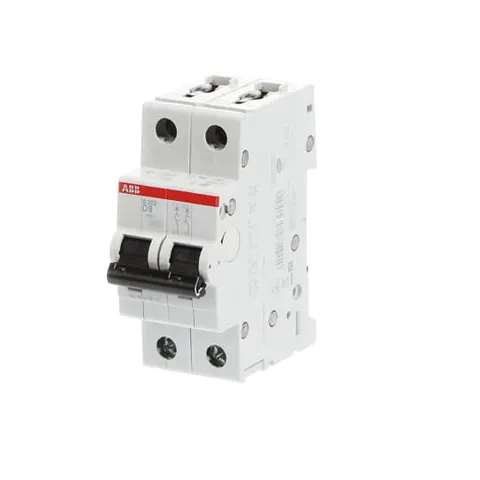

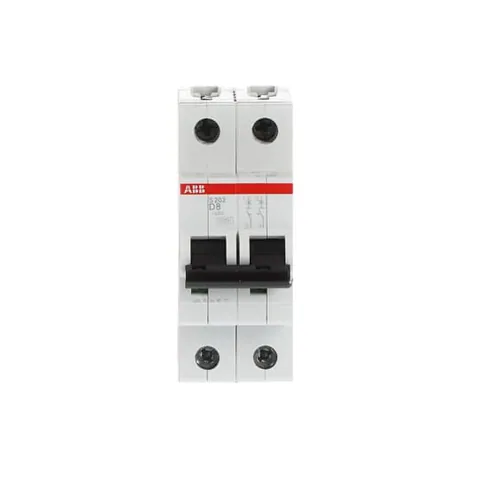

ABB 2CDS252001R0081

The S202-D8 Miniature Circuit Breaker features two distinct tripping mechanisms, including a delayed thermal mechanism for overload protection and an electromechanical mechanism for short circuit protection. With a rated operational voltage of up to 400 V AC according to IEC 60898-1 and 440 V AC per IEC 60947-2, this device ensures reliable performance in various applications.

It is compliant with standards such as IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077, making it suitable for residential, commercial, and industrial environments. The breaker has a rated short-circuit capacity of 6 kA for both AC and DC applications, and offers an energy limiting class of 3, which enhances safety by reducing fault currents.

In terms of installation, the S202-D8 fits onto DIN rails (TH35-15 and TH35-7.5) and can be mounted in any position. The unit measures 35 mm in width, 88 mm in height, and 69 mm in depth, with a weight of 0.224 kg. The auxiliary contact can be mounted to optimize space utilization.

Additionally, the product features a degree of protection of IP20 (IP40 with cover) and operates within ambient temperatures ranging from -25 °C to +55 °C. The S202-D8 is designed with sustainability in mind, featuring a recyclability rate of 80.7% according to EN45555.
