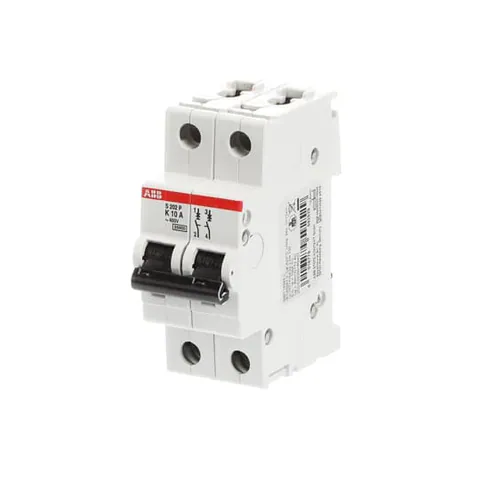

ABB 2CDS282001R0427

The S202P-K10 is a miniature circuit breaker featuring two poles and a K tripping characteristic, designed for applications requiring overload and short circuit protection. With a rated operational voltage of 400 V AC according to IEC 60898-1 and IEC 60947-2, this device is suitable for various environments including residential, commercial, and industrial settings.

This circuit breaker is compliant with several standards including IEC/EN 60898-1 and UL 1077, ensuring reliability and safety in operation. It has a rated short-circuit capacity of 25 kA at both 230 V and 400 V AC, providing robust protection against electrical faults.

Its compact design allows for installation in confined spaces, with dimensions of 35 mm in width, 88 mm in height, and 69 mm in depth. The device can handle an ambient temperature range of -25 to +55 °C, making it versatile for different operational conditions.

Additionally, the circuit breaker supports various connecting capacities, accommodating both flexible and rigid conductors, and features a screw terminal design for secure connections. The device is equipped with a mechanical endurance of 20,000 cycles and offers an IP20 degree of protection, with an enclosure option available at IP40.
