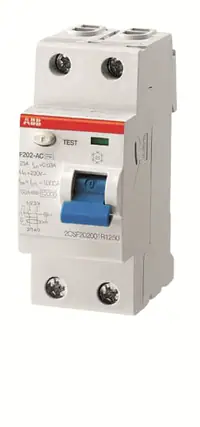

ABB 2CSF202101R2900

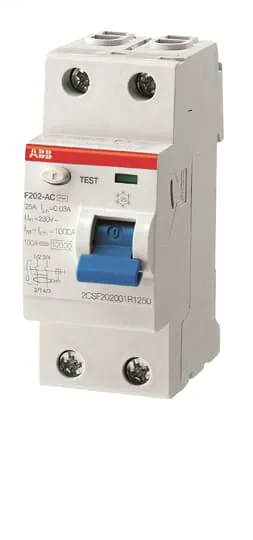

The F202 A-100/0.1 Residual Current Circuit Breaker is a critical component for safeguarding both human safety and electrical installations against fault currents to the earth. This device is compliant with standards IEC/EN 61008 and UL 1053, ensuring reliability in various applications.

It operates at a rated voltage of 230 V and can handle a rated current of 100 A. The circuit breaker features an instantaneous operating characteristic and is classified as a Type A device, which effectively detects and interrupts AC fault currents. With an impressive rated conditional short-circuit current of 10 kA and a rated impulse withstand voltage of 4 kV, this circuit breaker is built to endure demanding conditions.

Dimensions include a net width of 35 mm and a height of 85 mm, allowing for installation on standard DIN rails with a mounting position that is flexible to requirements. The product weighs 200 g and supports various connection types, including rigid and flexible busbars up to 35 mm². Additionally, it is equipped with screw terminals that ensure secure connections, with a tightening torque specification of 2.8 N·m.

Designed for operation in ambient temperatures ranging from -25 °C to 55 °C, the F202 A-100/0.1 also meets pollution degree 2 and features an IP2X protection degree for terminals. The mechanical endurance is rated for 20,000 cycles, ensuring long-term reliability. Options for auxiliary contacts and other accessories are available to enhance functionality in specific...
