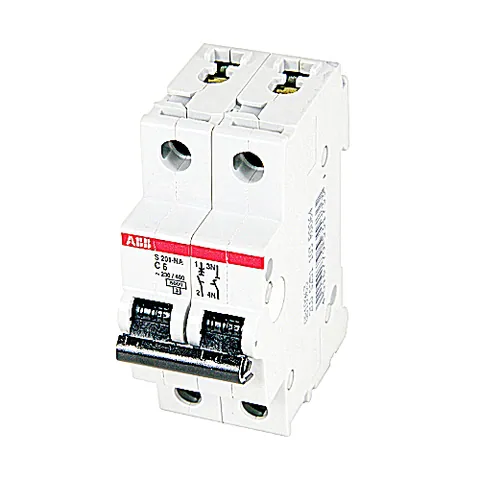

ABB S201-C6NA

The MCB Compact Supplementary Circuit Protector is a miniature circuit breaker specifically designed for applications requiring compact energy-limiting protection. With a rated current of 6 Amps and a unique interrupt rating of 6 kA, it is suitable for use in environments up to 277/Y480 VAC and 60/110 VDC. This model features DIN rail mounting for easy installation, complemented by finger-safe and multi-function terminals for versatile connectivity.

Complying with UL 1077 and CSA 22.2 No. 235 standards, the device is engineered for medium magnetic startup currents, making it ideal for lighting and control panel applications. The thermal-magnetic trip mechanism ensures reliable operation under varying load conditions, while its compact dimensions of 69 mm in length, 17.5 mm in width, and 88 mm in height allow for space-efficient installations. The product also includes features such as auxiliary contacts and a toggle actuator marked with 'I/O' for clear operational status indication.

With an operational temperature range of -25 to +55 degrees Celsius, the MCB is built to withstand harsh environmental conditions. Its design supports a variety of wire connections, accommodating busbars and flexible conductors, which enhances its adaptability across different setups. The unit is environmentally conscious, designed with an 80.7% recyclability rate according to EN45555 standards, and includes take-back services for responsible recycling.

This product also includes a degree of...
