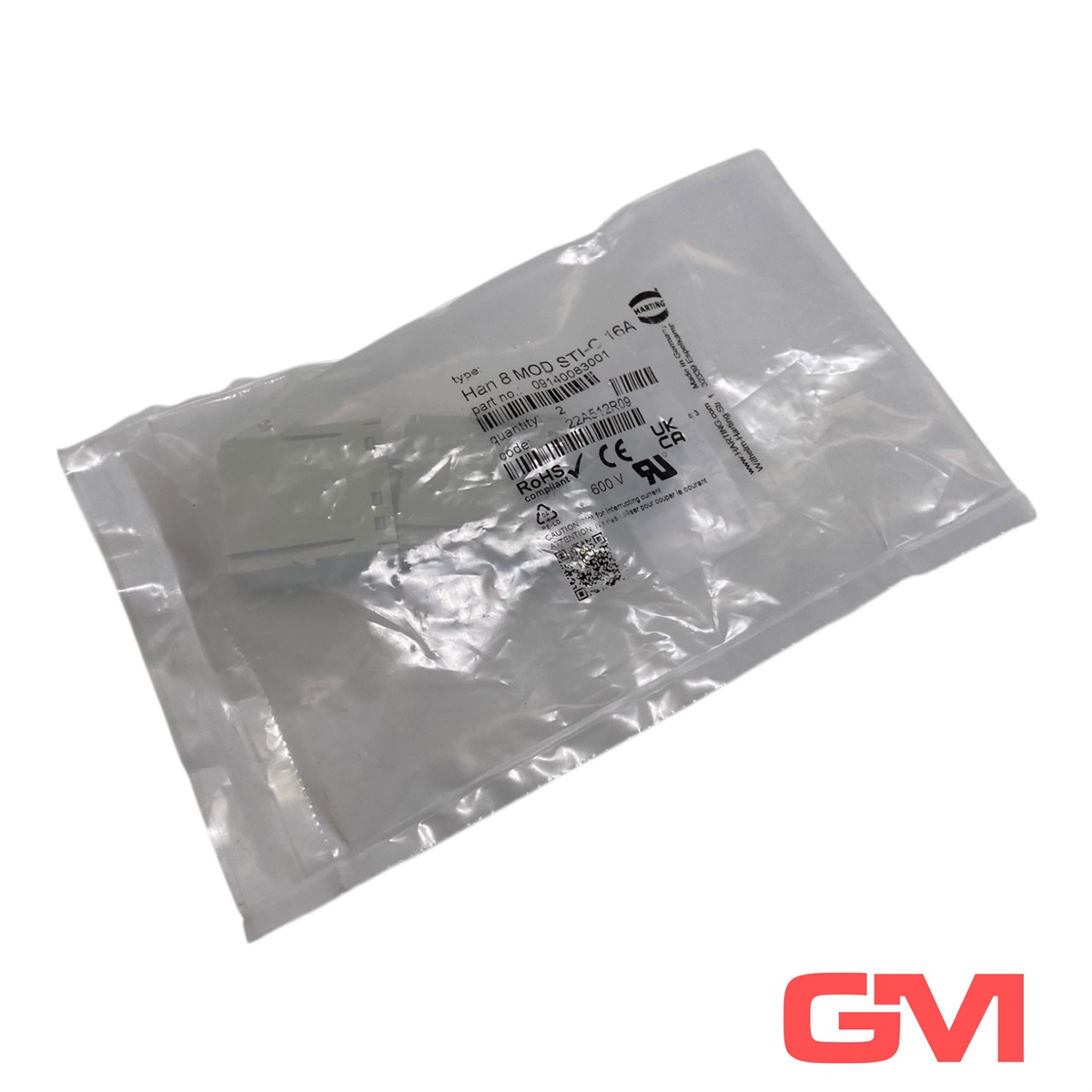

Harting 09140083001

The EE module is designed for industrial connectivity, featuring crimp termination and a male configuration. It accommodates up to 8 contacts, with a conductor cross-section range of 0.14 to 4 mm² and a rated current of 16 A. The module operates at a rated voltage of 400 V and can withstand a rated impulse voltage of 6 kV, classified under pollution degree 3.

Constructed from polycarbonate (PC) in RAL 7032 (pebble grey), this module also meets stringent material flammability standards with a classification of V-0 according to UL 94. It has an insulation resistance greater than 10 and is rated for a limiting temperature range from -40 to +125 °C. The module supports a minimum of 500 mating cycles, extending to 10,000 when used with other HMC components.

Compliant with EN 60664-1 and IEC 61984, the EE module has received approvals from DNV GL, UL, and CSA. It is packaged in sets of 2 and weighs 10 g. For optimal use, crimp contacts must be ordered separately. This module is categorized under the Han-Modular series and is suitable for various industrial applications.
