T1905E

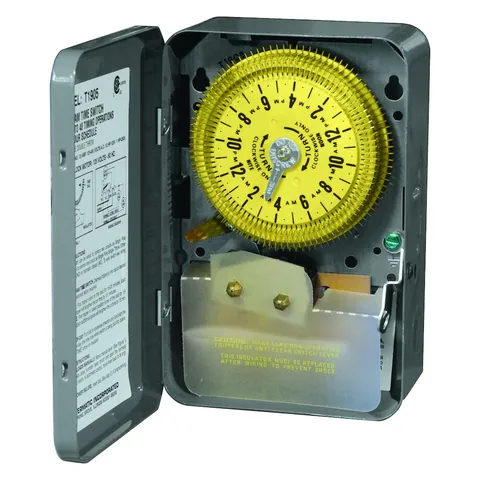

24-Hour Mechanical Time Switch, 480 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 15 Minute Interval

T1905E

Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
Sconti sulla rivendita fino al 40%!

Invia una richiesta di prezzo

1

Metodi di pagamento:

Richiedete un preventivo e vi invieremo informazioni su disponibilità e prezzi.

Additional Information

Part Number: T1905E
UPC: 078275117785
UNSPSC: 5193
Tariff Code: 9107.00.8000
Country of Origin: Mexico

Specifications

Country of Origin: Mexico
Product Height: 7.875 in; 200 mm
Product Width: 5.125 in; 130.2 mm
Product Depth: 3.4375 in; 87.3 mm
Warranty Period: 1-Year limited
Solutions: Machinery & Pumps; Panel Integrators
Packaging Applications: Poultry Feeders; Filters; Heaters; Blowers; Dairy Equipment; Foggers; Fans; Lighting; Electrical Pumps; Motors
Minimum On Off Time: 15 min
Maximum On Off Operations: 48
Skipper Wheel Operation Mode: Not Included
CSA Certification: cCSAus
Operation Mode: 24 hour
Applications: Timing/Scheduling ON/OFF; Indoor Lighting Control
Wire Size Min: #14 AWG
Wiring Option: Terminals
Input Voltage Ranges: 480 VAC, 60 Hz
Wire Size Max: #12 AWG
Number Of Circuits: 1
Enclosure Type: Indoor type 1 metal
Operating Temperature Min: -40°C
Operating Temperature Max: 130°C
Operating Temperature Min: -40°F
Operating Temperature Max: 54°F
Switch Type: SPDT
Lifecycle: Production
Power Consumption Max W: 3 W
Unit Carton Description: EA-Each
Number Of Trippers Included: 96
Has Manual Override CVL: Yes
Market: Commercial; Industrial
Units Per Pallet: 288

Load Ratings

Resistive Load Ratings: 20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz; 20 A, 480 VAC, 60 Hz
Resistive Load Ratings Ranges: 20 A, 125-480 VAC, 60 Hz
Motor Load Ratings: 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
