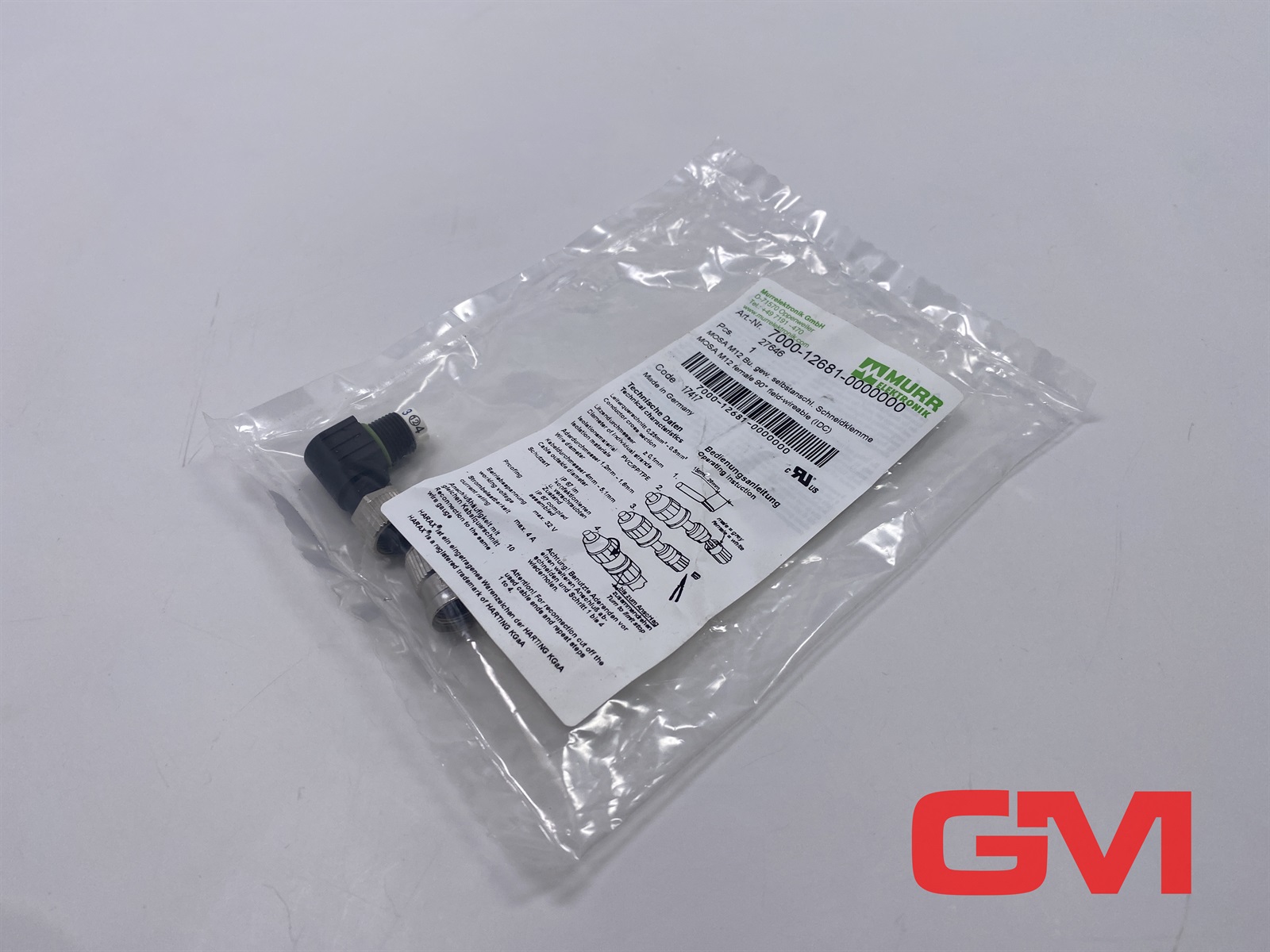

Murrelektronik 7000-12681-0000000

The Murrelektronik M12 Female 90° A-cod. IDC 4-pol. connector is designed for robust and secure connections in industrial environments. Featuring a 90° angled design, this 4-pole connector utilizes IDC terminals, allowing for quick and reliable wire connections with a cross-section range of 0.25 to 0.5 mm². The connector is built to withstand harsh conditions, offering IP67 protection according to EN IEC 60529 standards, ensuring it is dust-tight and protected against temporary immersion in water.

This connector supports both AC and DC operating voltages up to 32V and can handle a maximum current of 4A per contact. It is designed for easy installation with a tightening torque of 0.6 Nm and a clamping range of 4 to 5.1 mm. The device is protected when inserted and screwed, providing additional security against mechanical stress.

The Murrelektronik M12 Female 90° A-cod. IDC 4-pol. is suitable for a wide range of industrial applications, including automation, machinery, and control systems. Its compact dimensions (37 mm height, 40 mm width, and 15 mm depth) make it ideal for use in confined spaces. The connector operates reliably in temperatures ranging from -25°C to 85°C, ensuring consistent performance in various environmental conditions.

Important Installation Notes: Ensure the permissible bending radii are observed when laying cables to maintain the IP protection class. Use suitable measures, such as cable ties, to protect the connectors from mechanical loads.
