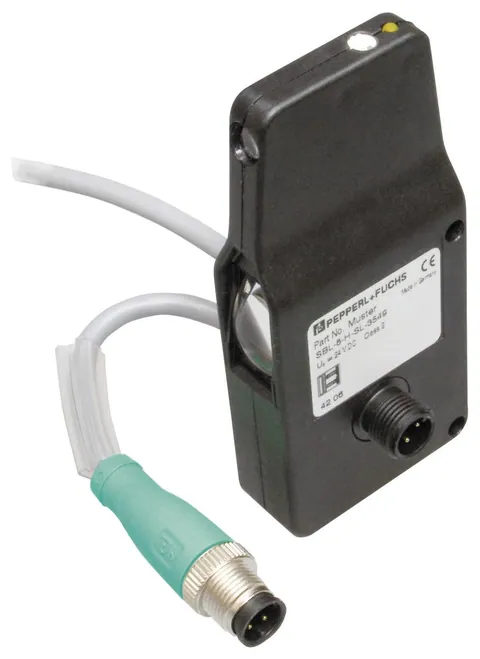

Pepperl+Fuchs 223830

The background suppression sensor operates effectively within an adjustable detection range of 15 to 600 mm, making it suitable for various applications. It utilizes modulated infrared light, specifically at 880 nm, to detect objects, ensuring high accuracy with a black-white difference of less than 15%. The sensor has a diameter of the light spot of approximately 40 mm at the maximum detection range of 600 mm.

Its design includes a fixed cable with an M12 plug and an additional fixed cable with an M12 socket for straightforward integration. The sensor is equipped with a yellow LED function indicator that activates upon detecting an object. The adjustment range spans from 250 to 600 mm, allowing flexible deployment based on specific operational requirements.

In terms of electrical specifications, the sensor operates at a voltage of 24 VDC with a maximum no-load supply current of 20 mA. Its output is a PNP signal, which is short-circuit and reverse polarity protected, handling switching voltages up to 30 V DC and currents up to 200 mA. The response time is rapid at 5 ms, enabling swift reaction in dynamic environments.

Built to withstand harsh conditions, the sensor boasts an IP65 protection rating, indicating resistance to dust and water, with operational temperatures ranging from -20 to 50 °C (-4 to 122 °F). It complies with multiple standards, including EN 60947-5-2, and has undergone rigorous testing for shock and vibration resistance per IEC / EN 60068.
