Phoenix Contact 1439984

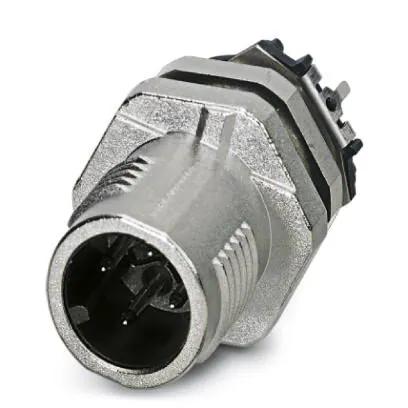

This 4-position sensor/actuator flush-type connector is equipped with M12 SPEEDCON technology, ensuring reliable connectivity in various applications. It features a shielded design with A-coding, making it suitable for use in environments requiring electrical protection.

The connector supports rear or screw mounting with an M12 thread, facilitating easy integration into existing systems. Its straight THR solder connection enhances the robustness of the installation.

Constructed from high-quality materials, this connector has a contact surface made of gold-plated copper-zinc (CuZn) and a contact carrier material of PPA. The knurls are made of nickel-plated zinc die-cast, while the sealing materials consist of FKM and EPDM, providing durability and resistance to harsh conditions. The product also meets the flammability rating of V0 according to UL 94 standards.

It operates effectively within an ambient temperature range of -25 °C to 85 °C and offers a degree of protection rated at IP67, making it suitable for outdoor and industrial applications. For environmental compliance, it adheres to REACh regulations and China RoHS standards, ensuring a 50-year environmentally friendly use period.
