Phoenix Contact 1441011

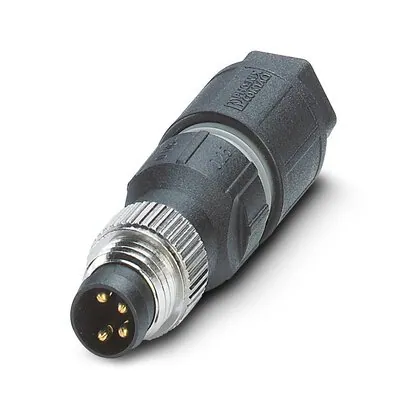

The SACC-M 8MS-4QO-0,25-M is a universal connector designed for M8 applications, featuring a straight plug configuration with A-coding. It accommodates 4 positions and is suitable for a range of cable diameters from 2.5 mm to 5 mm.

Constructed with a knurl made of zinc die-cast and nickel-plated for durability, this connector has a compact length of 43.4 mm and a housing diameter of 12.5 mm. The connection method is insulation displacement, supporting wire cross sections from 0.08 mm² to 0.25 mm² (AWG 28 to 24). Rated for a nominal voltage of 30 V AC and a nominal current of 4 A, it ensures reliable performance with a rated surge voltage of 0.8 kV.

With an insertion and withdrawal cycle life of at least 100 cycles, this connector exhibits a low contact resistance of ≤ 5 mΩ and high insulation resistance of ≥ 100 MΩ. It operates effectively across a temperature range of -25 °C to 80 °C and is designed to meet the IP65 protection standard, making it suitable for various industrial environments. The assembly note advises observing permissible bending radii to maintain protection integrity.
