Phoenix Contact 1457872

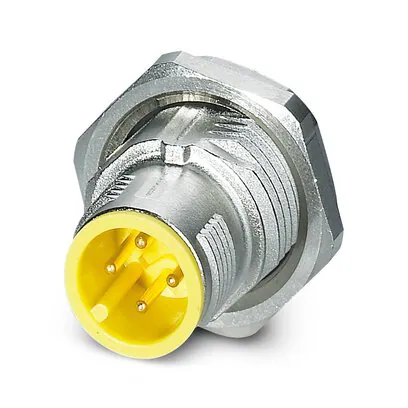

This M12 SPEEDCON device connector is designed for reliable data transmission, incorporating a yellow contact carrier with 4 positions. It features a shielded construction and utilizes rear mounting with an M16 thread for secure installation. The connector includes a straight solder connection method, which enables efficient assembly.

Constructed from high-quality materials, the housing is made of GD-Zn with a nickel surface finish, while the contact carrier is composed of PA 6.6. The contacts themselves are crafted from CuZn with a gold surface for optimal conductivity. With a contact resistance of ≤ 3 mΩ and an insulation resistance of ≥ 100 MΩ, this connector meets stringent electrical standards.

Rated for a nominal voltage of 250 V and a nominal current of 4 A, the connector operates effectively within an ambient temperature range of -25 °C to 85 °C. This device connector also complies with the UL Type 4 rating for indoor use only and is classified under the overvoltage category II and pollution degree 3. The degree of protection is rated at IP67 when plugged in, ensuring dust and water resistance.

Included in the delivery is a lock nut, facilitating installation. The connector adheres to IEC 61076-2-101 standards, confirming its reliability in industrial applications.
