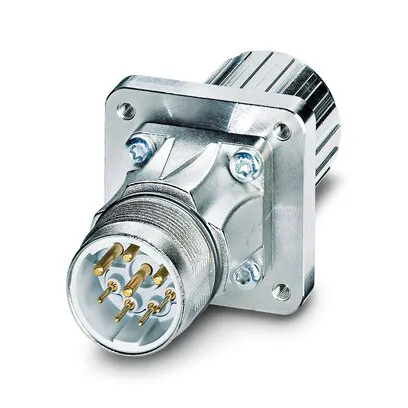

Phoenix Contact 1605567

The Pin/socket panel feed-through, model SF-7EE1N8AS000, features a straight M23 design and accommodates a connection profile of 4+3+PE. This component is equipped with 8 positions and utilizes a crimp connection method, ensuring secure and reliable integration in power applications.

Crafted for durability, it is shielded and complies with an IP67 degree of protection, allowing it to withstand harsh environmental conditions. The housing is made from GD-Zn material, while the rotating parts are composed of CuZn, providing resilience against corrosion. Its insulating body is constructed from PA 6.6, and it incorporates an FPM O-ring seal to maintain integrity against moisture ingress.

Designed for operational temperatures ranging from -40 °C to 125 °C, this connector can operate at altitudes up to 3000 m. The nominal current rating is 9 A, with a nominal voltage of 250 V and a rated surge voltage of 4 kV, making it suitable for various industrial applications. It is important to note that connectors from the SF series are incompatible with the M23 PRO series and should not be combined.
