Phoenix Contact 1605591

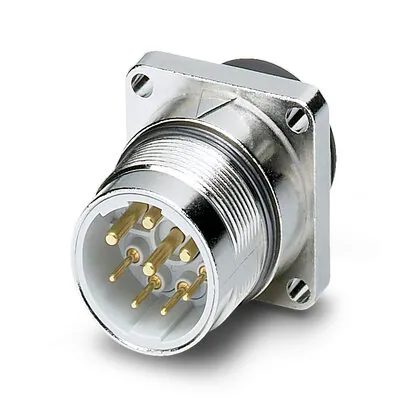

The device connector, designated as SF-7EP1N8AWK00, is designed for front mounting and features a straight low type configuration. It utilizes a screw locking mechanism and adheres to the M23 standard, providing a connection profile of 4+3+PE with a total of 8 positions.

With a contact type of pin and dimensions for the flange measuring 28 mm x 28 mm, this connector ensures reliable performance with a degree of protection rated at IP67. It is shielded to prevent interference, making it suitable for demanding applications. The crimp connection method allows for secure and efficient installation.

The product is constructed from durable materials, including a housing made of GD-Zn with a nickel surface and an insulating body composed of PA 6.6. The O-ring seal is made of FPM, contributing to its high protection rating. It operates effectively within an ambient temperature range of -40 °C to 125 °C and can be used at altitudes of up to 3000 m.

Notably, the nominal current rating is 9 A, with a nominal voltage of 250 V, and an overvoltage category of III, making it suitable for various power applications. It is imperative to note that these connectors should not be connected or disconnected under load to prevent damage to the device or injury.
