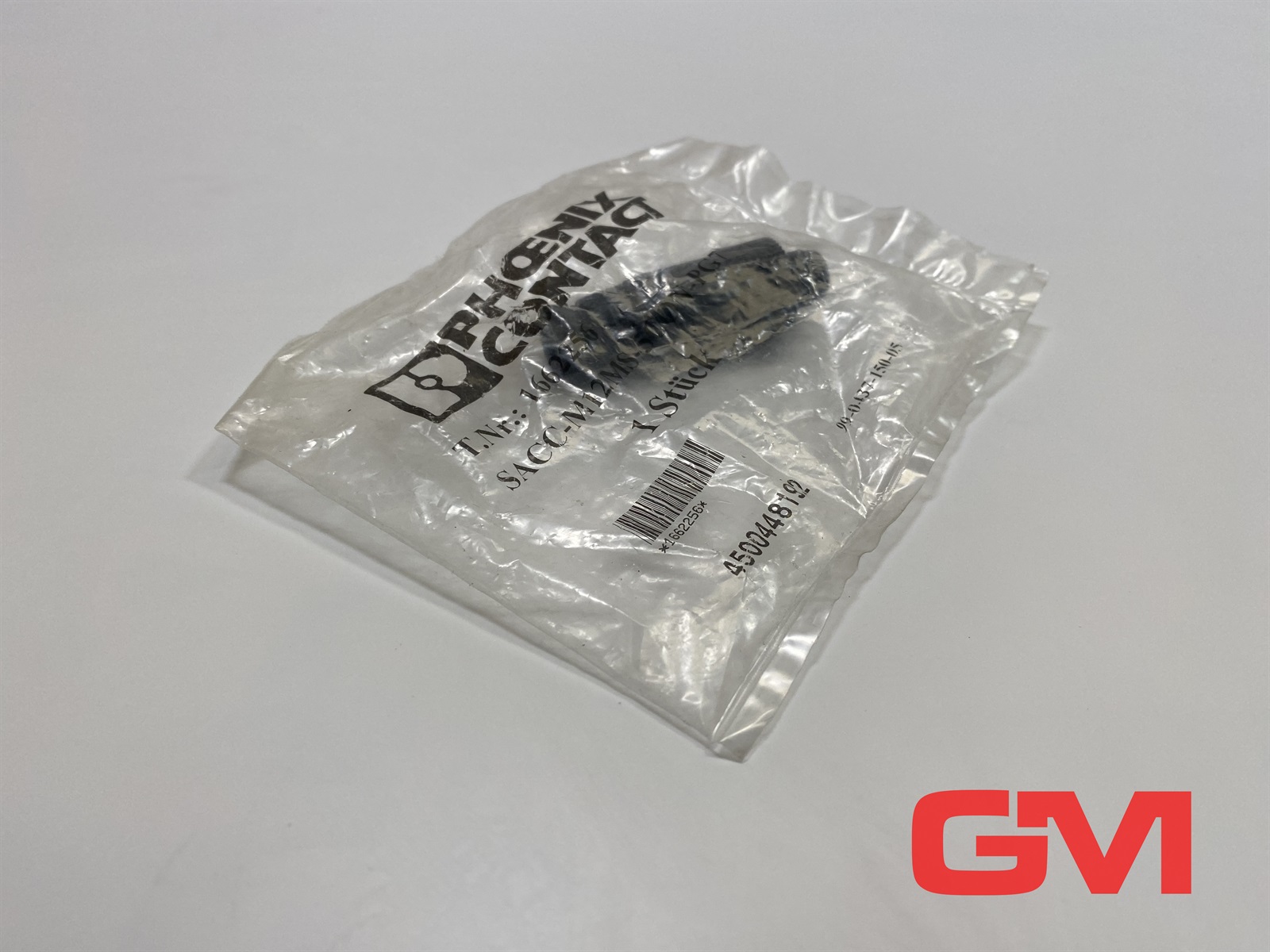

Phoenix Contact 1662256

The SACC-M12MS-5CON-PG 7 is a universal connector designed for versatility in industrial applications. It features a straight M12 plug with A coding and a robust screw connection. The connector supports an external cable diameter range of 4 mm to 6 mm, ensuring compatibility with various cable types.

Constructed with a plastic knurl and a housing diameter of 20 mm, this connector is designed to withstand environmental challenges. Its rated surge voltage is 1.5 kV, with a nominal voltage of 48 V AC and a nominal current capacity of 4 A. The unit is rated IP67, providing effective protection against dust and water ingress, making it suitable for harsh operating conditions.

With a length of 60 mm, the connector is compact yet functional, featuring a connection cross-section of 0.25 mm² to 0.75 mm², corresponding to AWG sizes of 24 to 18. The connector allows for a minimum stripping length of 5 mm and requires a tightening torque of 0.4 Nm during installation. Operational temperature ranges from -40 °C to 85 °C, making it suitable for a variety of environments.
