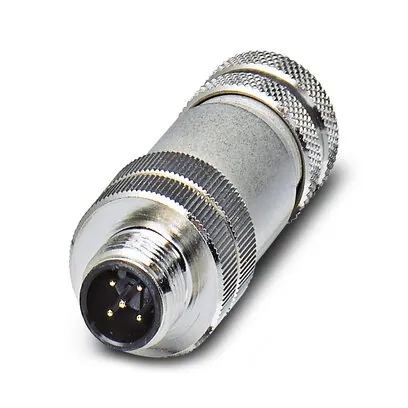

The SACC-M12MS-5CON-PG 9-SH is a universal connector designed to facilitate reliable connections in various applications. It features a 5-position configuration and is shielded to ensure optimal signal integrity. The connector has a straight M12 plug with A-coding and utilizes a screw connection for secure fastening.

Constructed with a zinc die-cast knurl that is nickel-plated, it provides durability and resistance to corrosion. The cable gland is rated Pg9, allowing for an external cable diameter of 6 mm to 8 mm. The connector operates effectively across a temperature range of -40 °C to 85 °C, making it suitable for diverse environmental conditions.

With an IP67 degree of protection, it is designed to withstand dust and immersion in water, ensuring functionality in harsh conditions. The connector supports a nominal voltage of 48 V AC, a nominal current of 4 A, and has a rated surge voltage of 1.5 kV. It features a contact resistance of ≤ 3 mΩ and an insulation resistance of ≥ 100 MΩ.

Important assembly notes include observing permissible bending radii to maintain the degree of protection and reducing mechanical loads with cable ties. The product complies with IEC 61076-2-101 standards, making it a reliable choice for various industrial applications.
