Phoenix Contact 1832866

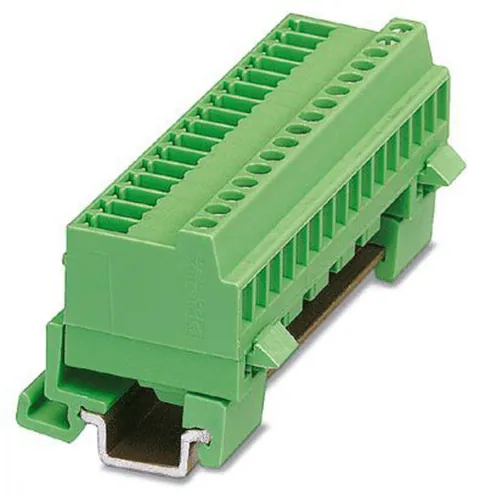

The DIN rail connector, designated as MCVK 1,5/15-G-3,81, has a nominal cross section of 1.5 mm² and is designed for a nominal current of 8 A with a rated voltage of 160 V (III/2). It is equipped with a male connector type and has 15 potentials, arranged in a single row with 15 positions and connections. The connector operates at a pitch of 3.81 mm and utilizes a screw connection method with a tension sleeve for secure connections.

The connector is primarily used for mounting on DIN rails. It is characterized by a green insulating material and a tin-plated contact surface that enhances conductivity. The connector's design allows for a conductor to PCB connection direction of 0°, facilitating straightforward installation and integration into existing systems. This product does not include locking features and comes packaged in cardboard.

In terms of construction, the connector complies with WEEE/RoHS directives and is manufactured in Poland. The weight per piece, including packaging, is 19.4 g. The connector's operating temperature ranges from -40 °C to 105 °C, making it suitable for various environmental conditions.
