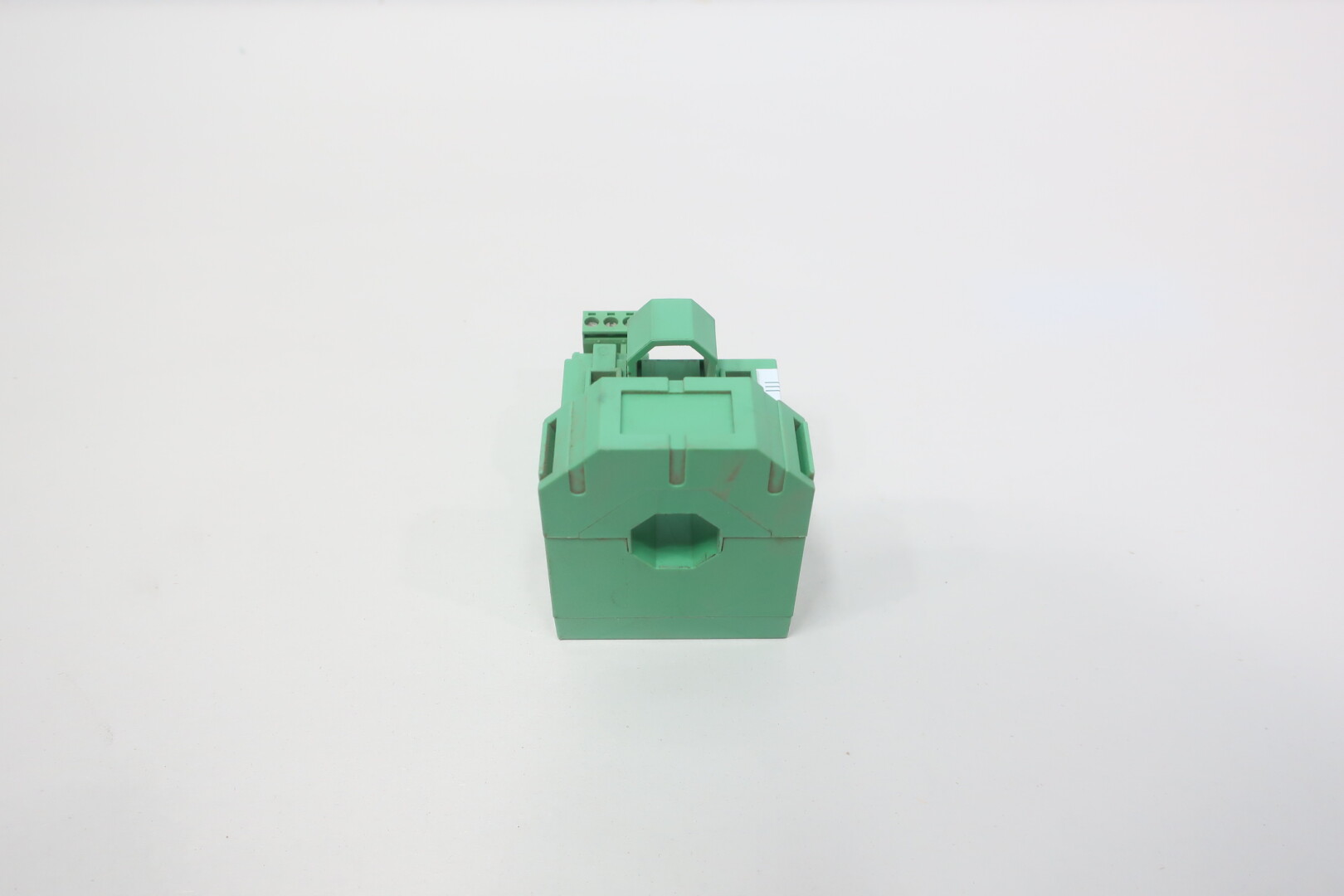

Phoenix Contact 2813486

The MCR current measuring transducer is engineered for precise measurement of both sinusoidal and non-sinusoidal alternating currents. It accommodates an input current range from 0 A to 100 A, providing versatility in various applications. The device features a loop-powered output signal of 4 to 20 mA, eliminating the need for an external power supply.

With a response time of less than 340 ms, this transducer ensures quick and reliable measurements. The maximum temperature coefficient is < 0.025 %/K, and it maintains a maximum transmission error of less than 1 % of the final value, ensuring high accuracy. The device is capable of operating across a frequency range of 30 Hz to 6000 Hz and supports configurable settings for both minimum and maximum input currents.

Constructed from non-reinforced polyamide PA, the transducer is housed in a green enclosure (RAL 6021) with a protection class of IP20. It is designed for DIN rail mounting, allowing for flexible installation in various environments. The operating temperature range extends from -20 °C to 60 °C, with a storage temperature range of -40 °C to 85 °C. Additionally, it complies with CE standards and is UL/C-UL Listed under UL 508, indicating its reliability and safety in industrial applications. The item number is 2813486 and it is classified under the product key CMMA23.
