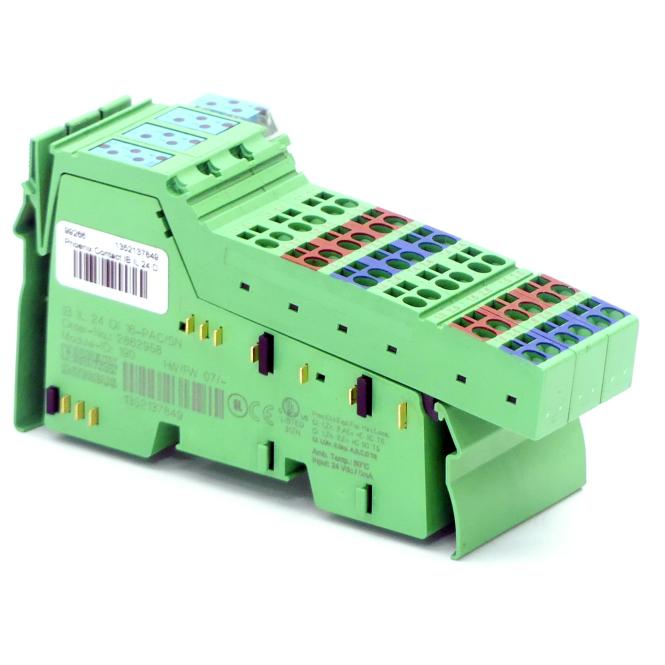

Phoenix Contact 2862958

The IB IL 24 DI 16-PAC/SN is designed for industrial applications, offering 16 digital inputs with an operating voltage of 24 V DC. This inline terminal utilizes a 3-conductor connection method and ensures reliable data transmission at a speed of 500 kbps. It is equipped with inline connectors and individually numbered marking fields, facilitating straightforward installation and identification.

With a compact design measuring 48.8 mm in width, 140.5 mm in height, and 71.5 mm in depth, it is optimized for DIN rail mounting. The device operates within a temperature range of -25 °C to 55 °C and is rated with a degree of protection of IP20, making it suitable for various industrial environments. The input voltage ranges from -3 V DC to 30 V DC, catering to diverse signal requirements.

This module has a maximum power dissipation of 1.6 W and can draw up to 4 A of current. Additionally, it meets the protection class III standards as per IEC 61140, ensuring safety during operation. The ambient conditions for operation include a permissible humidity range of 10% to 95%, in accordance with DIN EN 61131-2.
