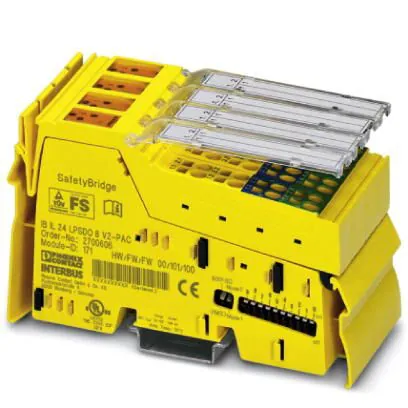

Safety module - IB IL 24 LPSDO 8-PAC - 2916024
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
$2,301.80
1
Metodi di pagamento:
Un totale di 9 Parts In-Stock da 11 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€510.60
Additional Information
- Part Number
- 2916024
- UPC
- 4046356479110
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Dimensions
- Width
- 48.8 mm
- Height
- 119.8 mm
- Depth
- 71.5 mm
- Note on dimensions
- Housing dimensions
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Permissible humidity (operation)
- 10 % - 85 % (Take suitable measures against increased air humidity within the permitted temperature range.)
- Permissible humidity (storage/transport)
- 10 % - 85 % (Take suitable measures against increased air humidity within the permitted temperature range.)
- Air pressure (operation)
- 80 hPa - 108 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 66 hPa - 108 kPa (up to 3500 m above sea level)
- Degree of protection
- IP20
SafetyBridge properties
- Connection to I/O modules
- max. 3 (safe digital input modules)
- Logic memory
- 6 kByte
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
- China RoHS
- Environmentally Friendly Use Period = 50 years
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Digital outputs
- Output name
- Digital outputs
- Connection method
- Spring-cage connection
- Connection technology
- 2, 3, 4-wire
- Number of outputs
- 4 (with two-channel assignment)
- Number of outputs
- 8 (for single-channel assignment)
- Number of outputs
- 8
- Protective circuit
- Overload protection, short-circuit protection of outputs
- Output voltage
- 24 V DC (US - 1 V)
- Nominal output voltage
- 24 V DC
- Output current
- max. 6 A (Total current of all outputs, -25 °C - 50 °C)
- Output current
- max. 4 A (Total current of all outputs, >50 °C - 55 °C)
- Maximum output current per channel
- 2 A
- Maximum output current per group
- 3 A
- Nominal load, inductive
- see safety data
- Nominal load, lamp
- see safety data
- Nominal load, ohmic
- see safety data
- Behavior with inductive overload
- Output can be destroyed
Interfaces
- Designation
- Inline local bus
- No. of channels
- 2
- Connection method
- Inline data jumper
- Transmission speed
- 500 kbps / 2 Mbps
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
Power supply for module electronics
- Supply voltage
- 24 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC
Inline potentials
- Designation
- Communications power (UL)
- Supply voltage
- 7.5 V DC (see safety data)
- Current consumption
- max. 230 mA (see safety data)
- Designation
- Main circuit supply (UM)
- Supply voltage
- 24 V DC (see safety data)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
- Current consumption
- typ. 30 mA (all outputs set including actuator current)
- Current consumption
- max. 6.03 A
- Designation
- Segment circuit supply (US)
- Supply voltage
- 24 V (see safety data)
Safety-related characteristic data
- Designation
- IEC 61508 - High demand
- Safety Integrity Level (SIL)
- max. 3 (two channel; dependent in parameterization and wiring)
- Designation
- IEC 61508 - Low demand
- Designation
- EN ISO 13849
- Performance level (PL)
- max. e (two channel; dependent in parameterization and wiring)
- Category
- max. 4 (two channel; dependent in parameterization and wiring)
- Designation
- EN 62061
- Safety Integrity Level Claim Limit (SIL CL)
- max. 3 (two channel; dependent in parameterization and wiring)
