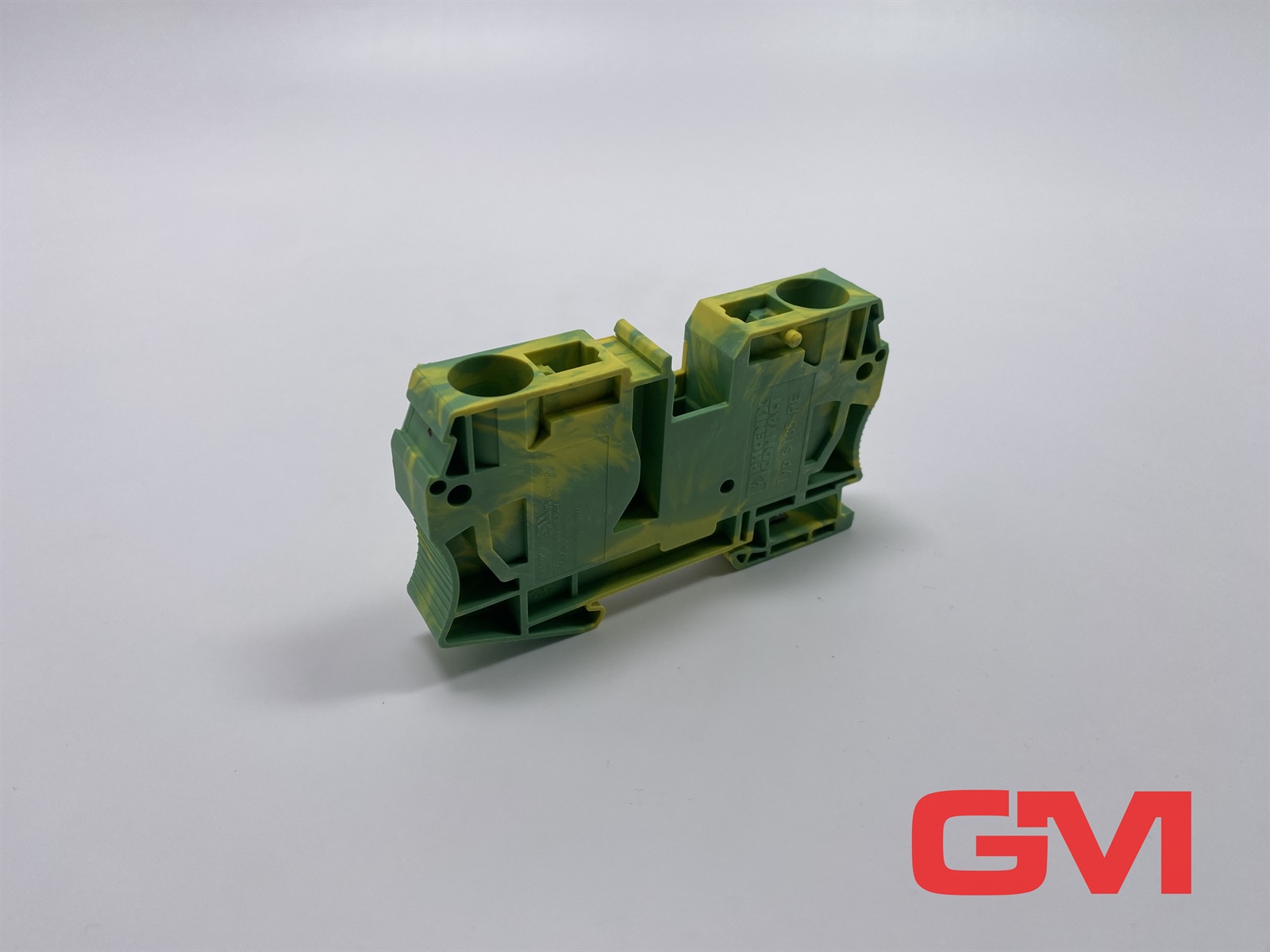

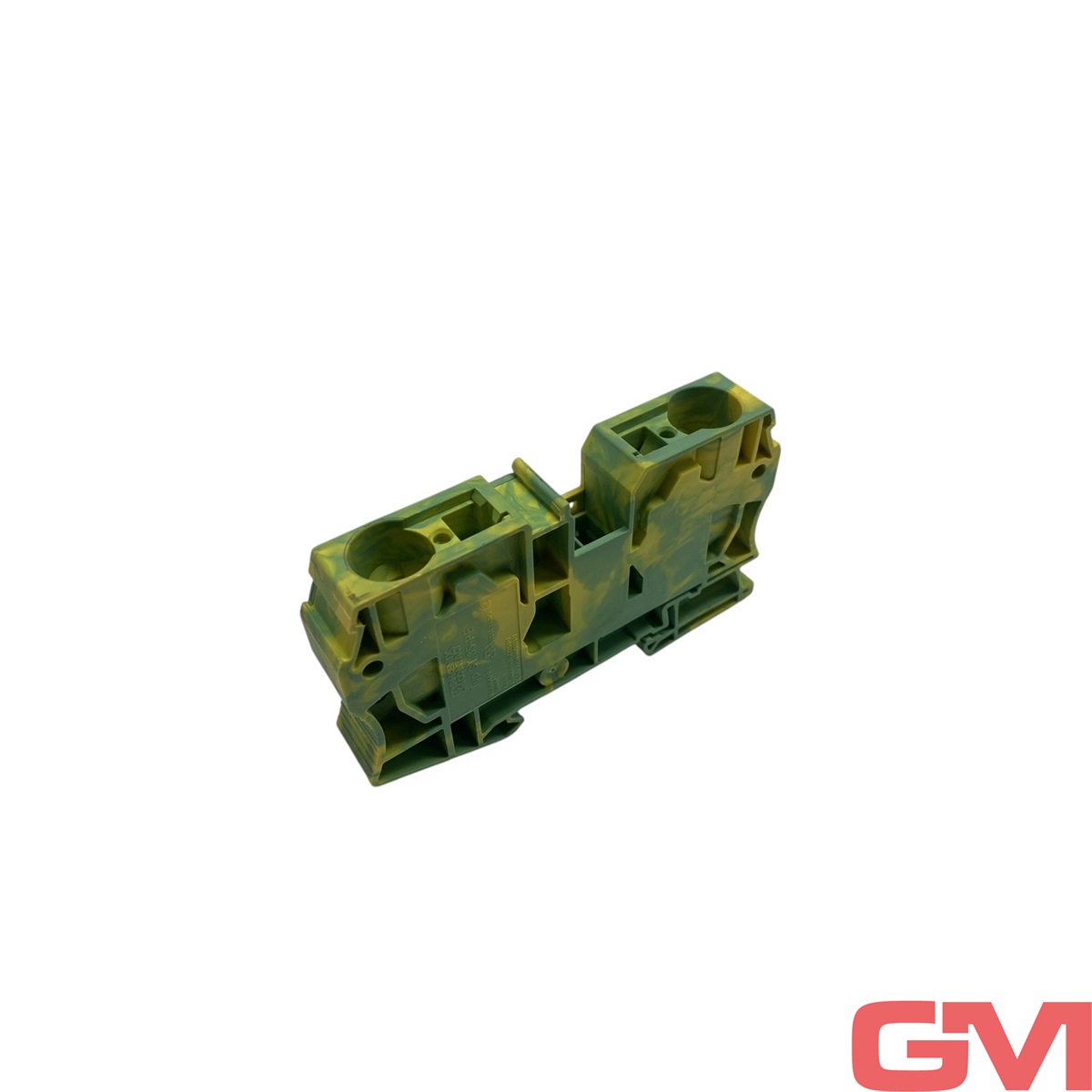

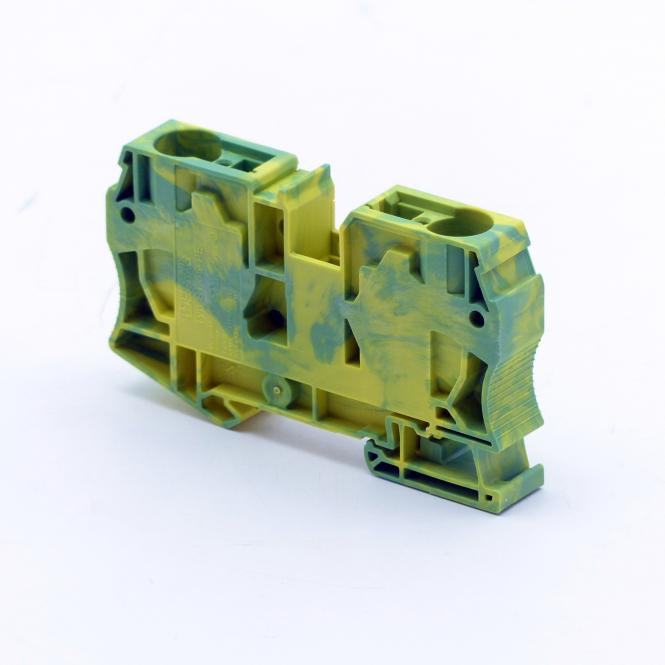

Phoenix Contact 3036194

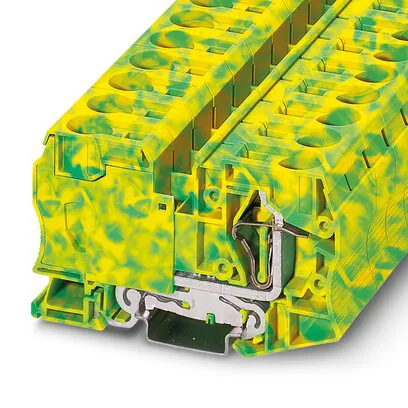

The protective conductor terminal is rated for a nominal voltage of 1000 V and a nominal current of 125 A, accommodating two connections. It utilizes a spring-cage connection method and is designed with a rated cross section of 35 mm², supporting a range of conductor cross sections from 2.5 mm² to 35 mm². This terminal can be mounted on NS 35/7.5 or NS 35/15 mounting types and is colored green-yellow.

With a compact width of 16 mm and a height of 100 mm, the terminal's depth varies at 59 mm on NS 35/7.5 and 66.5 mm on NS 35/15. It complies with the IEC 60947-7-1 standard for connection. In terms of environmental resilience, it operates efficiently across a temperature range of -60 °C to 85 °C and has a rated surge voltage of 8 kV, making it suitable for various applications. The designation code for this product is ST 35-PE.
