Phoenix Contact 3041457

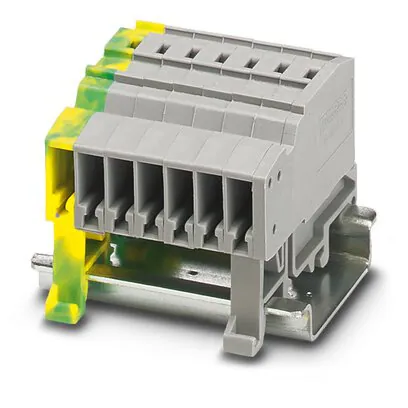

The COMBI receptacle is designed for applications requiring reliable electrical connections in the railway industry. With a nominal voltage of 500 V and supporting a maximum load current of 24 A, this receptacle utilizes a spring-cage connection method. The rated cross section is 2.5 mm², accommodating a conductor range from 0.08 mm² to 4 mm² for rigid conductors and up to 2.5 mm² for flexible conductors.

It features a compact design with a width of 38.4 mm and is intended for NS 35/7.5 and NS 35/15 mounting types. The receptacle has a total of 7 positions and is rated for overvoltage category III, making it suitable for demanding environments. The designation code for this product is SC 2,5-NS/ 7 (1GNYE/6GY).

Constructed from polyamide (PA), it has a flammability rating of V0 according to UL 94, ensuring compliance with stringent safety standards. Its temperature index is rated at 130 °C, and it functions effectively in a wide ambient temperature range of -5 °C to 70 °C. Additionally, it meets fire protection standards for rail vehicles as per DIN EN 45545-2, indicating suitability for use in high-risk areas.
