Phoenix Contact 3273712

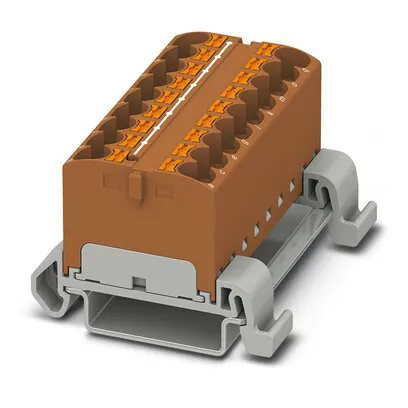

The PTFIX 18X4-NS35A BN distribution block is designed for efficient connectivity with a nominal voltage of 800 V and a maximum current rating of 32 A. It utilizes a push-in connection method suitable for conductor cross sections ranging from 0.2 mm² to 6 mm². The block supports horizontal alignment and can be bridged together with other blocks utilizing the conductor shaft, with corresponding plug-in bridges available as accessories.

For mounting, it is compatible with NS 35/7.5 and NS 35/15 types, featuring a brown color (RAL 8028). This distribution block has 18 connection points on a single row, providing versatility for various applications. It meets standards outlined in IEC 60947-7-1 and is rated for overvoltage category III, making it suitable for environments with a degree of pollution up to level 3.

Additional specifications include a rated surge voltage of 6 kV and a maximum load current of 41 A. The block has a compact size with dimensions of 55.4 mm in width, 45.7 mm in height, and a depth of 30.9 mm on NS 35/7.5. It is constructed from PA insulating material with a flammability rating of V0 according to UL 94, ensuring safety in various operational conditions.
