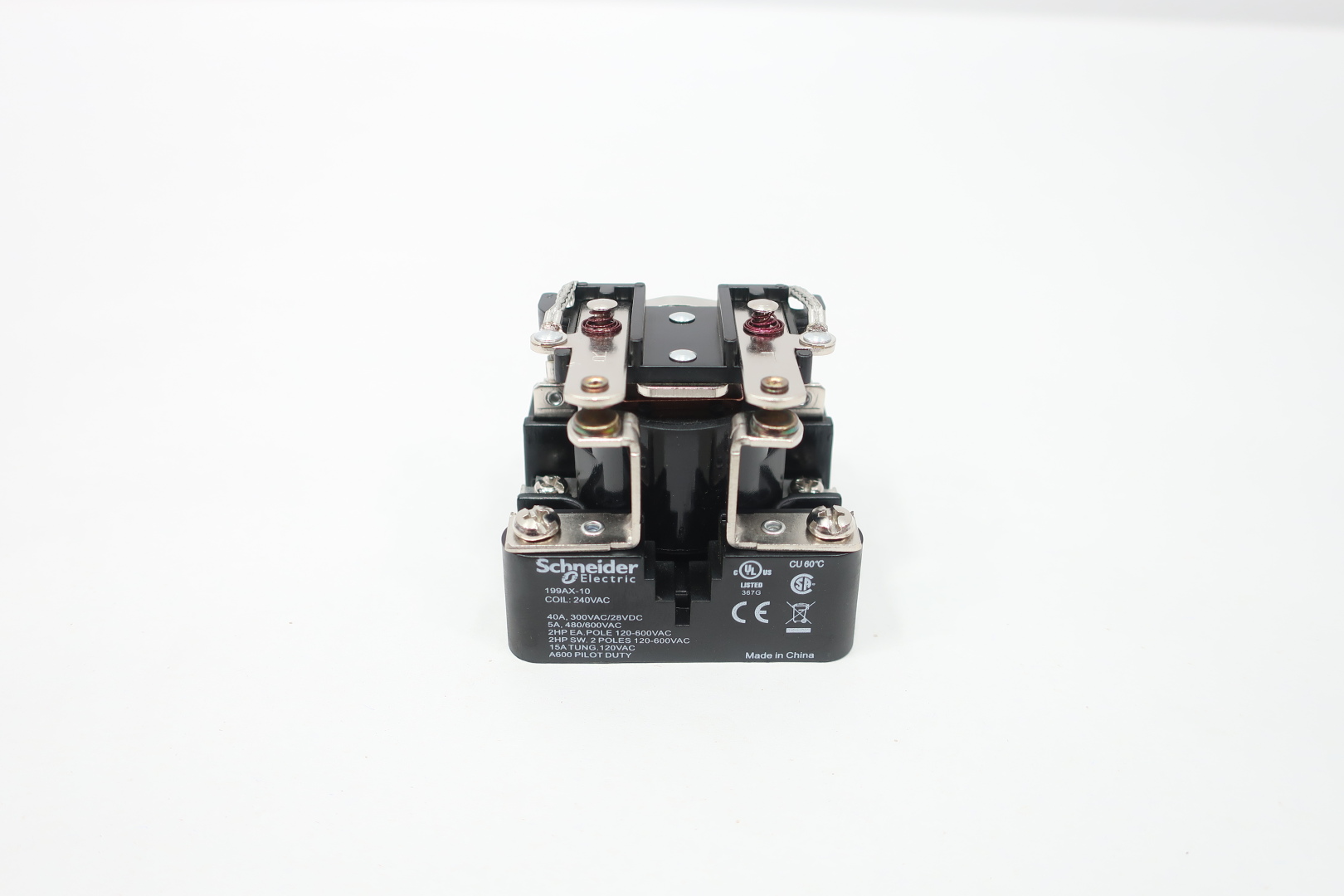

Schneider Electric 199AX-10

The power relay in the SE Relays 199 series is constructed with an open cover design, ensuring high-capacity switching capabilities and robust dielectric strength. Rated for a maximum operational current of 40A under resistive load at 300V AC, it can also handle 2 horsepower at voltages ranging from 120 to 600 VAC. The relay is configured with DPST-NO silver alloy contacts, which enhance its reliability and performance.

With an input coil voltage of 240 VAC, this relay also supports a wide voltage range from 6 to 600 VAC and 6 to 250 V DC. Its riveted construction significantly extends the mechanical lifespan, while the environmentally friendly design adheres to the European Restriction of Hazardous Substances directive (RoHS).

In terms of durability, the relay is rated for 50,000 cycles under resistive loads, featuring a dielectric strength of 2200 V AC between the coil and contacts, as well as between poles. The ambient air temperature range for operation is -55 to 55 °C, with storage capabilities extending from -55 to 100 °C. It is compliant with key certifications such as UL, CSA, and CE.
